MDS 21C Schwarzbeck EMI disturbance power absorption clamp

Model: MDS 21C
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

MDS 21C is an EMI nuisance power absorber clamp manufactured by Schwarzbeck, Germany and distributed by EUTTEST Shenzhen, designed to measure the nuisance power of household appliances and other products under test in the frequency range of 30-1000 MHz, which is fully compliant with the nuisance power test requirements of CISPR 16-1-3 below.

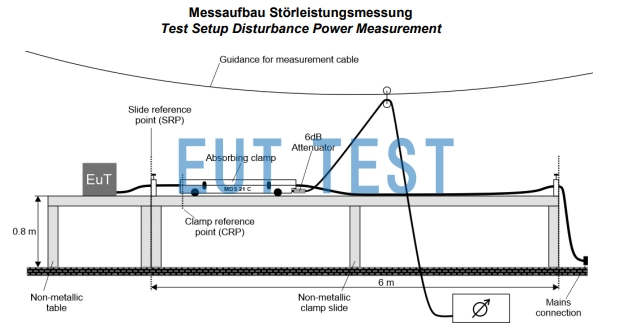

Configuration diagram for testing nuisance power as required by CISPR 16-1-3

Configuration diagram for testing nuisance power as required by CISPR 16-1-3

Structure of the power absorbing clamp:

The MDS21C power absorbing clamp consists of the following five functional units:

  • RF Current TransformerTransformer for measuring the nuisance power signal of the product under test, the clamp reference point CRP must face the EuT.
  • The majority of the absorbing clamp consists of individual precision-ground ferrite rings that provide standard-defined RF coupling to the EUT line under test and decouple the effects from the power supply.
  • Sheath wave suppressor for improved reproducibility.
  • Plastic housing for easy opening and wheels in roller bearings for easy movement.
  • Configured with an external 6 dB attenuator to improve impedance matching with 50 Hz systems. In combination with the right angle adapter, the coaxial cable for testing can be mounted perpendicular to the power absorber clamp.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Absorption clamp modelMDS 21C
Product nameEMI Nuisance Power Absorber Clamp
manufacturerSchwarzbeck, Germany
Domestic agentsShenzhen EUTTEST
Available frequency30MHz-1000MHz
Available Impedance50Ω
Available Insertion Loss17dB
Decoupling DR>21dB
Decoupled DF>30dB
Maximum current30A
Maximum input power20W
maximum diameter17mm
connectorN
length, width and height645 x 66 (110) x 102 mm
Optional Accessories
  • 6dB Attenuator DGA 9552N
  • Right Angle Adaptor N-N
  • Coaxial cable RG 223/U (5 m)
  • Other related accessories and installation training
weight5.8kg
<<<<提醒:左右滑动表格>>>>

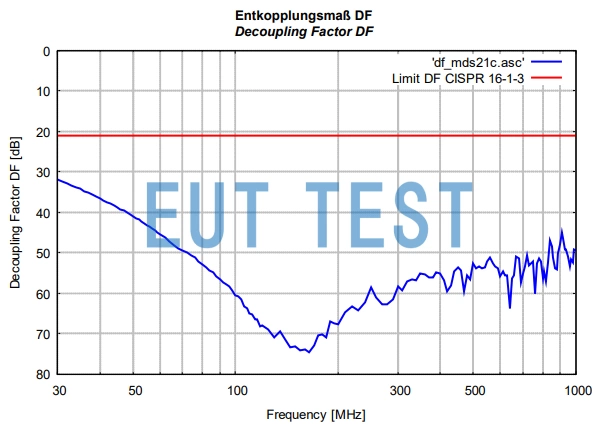

Decoupling Factor DF Curve of MDS 21C EMI Nuisance Power Absorber Clamp

Decoupling Factor DF Curve for EMI Nuisance Power Absorption Clamps
