Introduction：
MagTest System is a low-frequency immunity test system produced by schwarzbeck, Germany and authorized to be sold by EUTTEST Shenzhen, which can generate magnetic fields and perform relevant magnetic field immunity tests according to MIL-STD-461E (RS101), MIL461F, ISO 11452-8, EN 55103-1/2, EN 61000-4-8, SAE J1113-22 and other military or civilian standards to generate magnetic fields and perform tests for magnetic field immunity. Most automobile manufacturers have removed their own standards which include: Peugeot Citroen B217110, Renault 36-00-808, Ford ES-XW7T-1A278-AC and many others. Another application is the calibration of magnetic loop antennas or sensors.
Meets criteria:
- Mercedes-Benz MBN10284-2, 2008-03;
- VW (special EuTs) TL82566:2006-11
- vw tl 82566:2006-11
- Ford ES-XW7T-1A278-AC
- Ford EMC-CS-2009.1
- psa b21 7110 eq/ir 02
- Renault 36-00-808/-M
- Fiat STD No. 7-Z0450
- ISO 11452-8(Hand-held antenna method and Holmholtz coil method)
- MIL-STD 461 E/F/G RS 101
- GJB 151B-2013
System components and list of instruments required:
EUTTEST offers a low frequency magnetic field immunity test system, MagTest System, which includes the following main equipment and cables:, for a detailed list of configurations contact us for more information.
- 1、Signal generator
- 2、Power amplifier
- 3、Splitter
- 4. Field generation equipment such as a radiation loop or a pair of Helmholtz coils
- 5. In some cases, monitoring magnetic field probes are used to monitor the magnitude of the magnetic field in the loop in a closed-loop method.
- 6、RMS-Voltmeter Effective Value Voltmeter
The list of recommended instrumentation is shown in the table below:
| Power amplifier | LFPA 9733B |
| splitter | SHUNT |
| current probe | CP 9610 |
| Radiating Loops antenna | FESP 5132 |
| Homer's Hertz ring | HHS 5206-16 HHS 5204-12 HHS 5202-9 |
| Matching Networks | NFCN 9734 |
| ring of supervision | FESP 5134-40 |
| RMS Voltmeter | 34400 Serial |
| low frequency signal source | 33500 Sequence |
Diagram of the actual configuration of the system:
Perform RS101 test
Maximum field strength generated with HHS 5210
Maximum field strength generated with HHS 5212
Maximum field strength generated in conjunction with HHS 5201-98

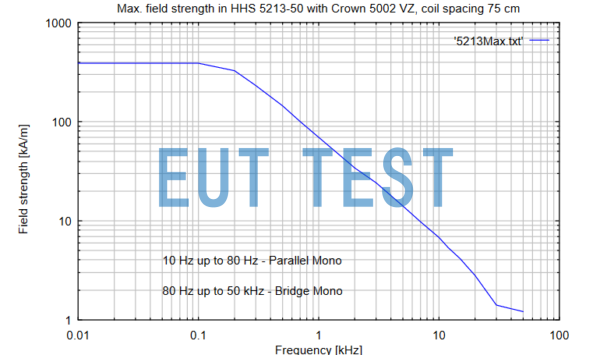

Maximum field strength generated with HHS 5213-50
So we provide low frequency magnetic field immunity test system can be used with a variety of antennas to complete the standard requirements of the magnetic field test needs, contact us to get a free home to plan the experimental site and quotation services.
