Introduction:

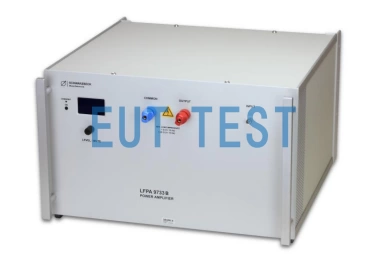

LFPA 9733B is a low-frequency power amplifier produced by Schwarzbeck, Germany, and authorized by EUTTEST in Shenzhen, China. It is especially suitable for low-frequency magnetic field immunity testing according to ISO 11452-8, and it replaces the NFPA 9730, which has been discontinued.

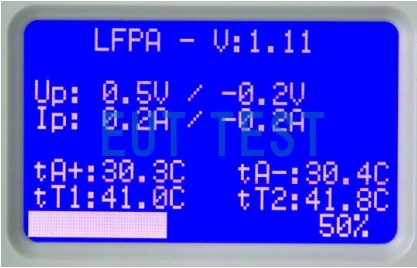

The amplifier can have a gain effect of 26dB in the frequency range of 5Hz-1MHz (nearly 20 times amplification), external two banana head power output port, can directly output large voltage and current signals to theHomer Hertz antennaand handheld radial ring antennas to generate a magnetic field, the voltage and current are shown by a display on the front of the unit and an overvoltage and overcurrent alarm is provided.
For more information on low frequency magnetic field immunity testing, click on the following link:
ISO 11452-8 Low Frequency Magnetic Field Immunity Test System
Technical parameters:
Product model | LFPA 9733B |
Device name | power amplifier |
manufacturer | Schwarzbeck Shenzhen EUTTEST agent sales |
Available Criteria | MIL-STD-461E RS101 MIL-STD-461F RS101 ISO 11452-8 EN 55103-1/2 EN 61000-4-8 SAE J1113-22 |
frequency | 5Hz-1MHz |
gain | 26±3dB |
AC Output Current | 28 Arms 50% Duty Cycle @ 5 minutes |
AC Minimum Load | 0.25Ω |
Maximum Output Voltage | 60Vpeak@5Hz-250kHz 30Vpeak@1MHz |
Maximum Output Current | 40 Apeak |
Input impedance | 1kΩ |
connector | BNC |
output connector | banana head |
electric power source | 220V AC |
size | 448 x 473 x 280 mm |
weight | 40kg |

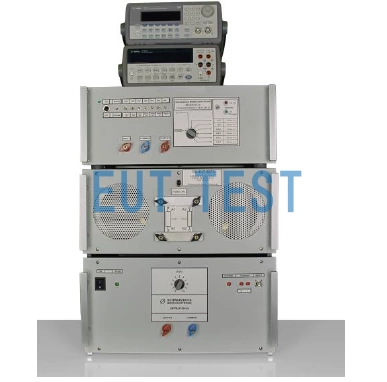

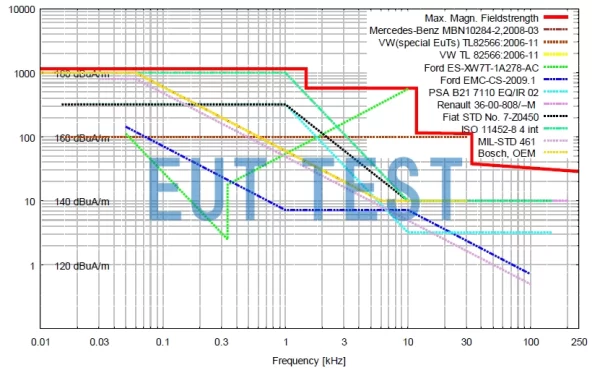

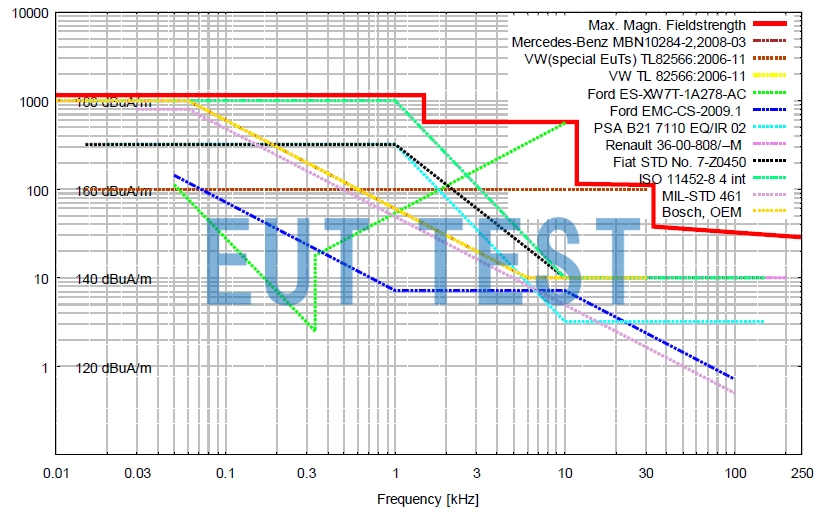

Graph of related technical parameters:
