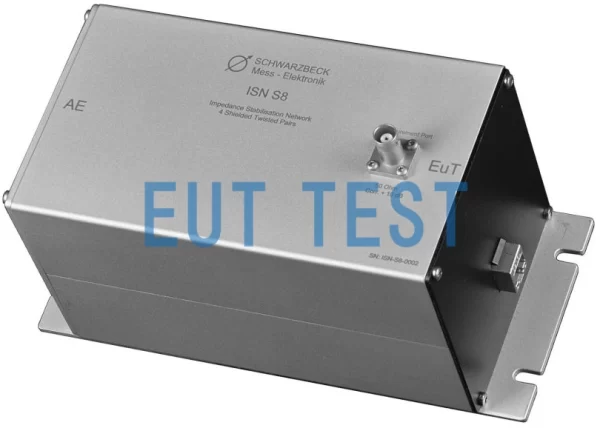

ISN S8 Schwarzbeck Shielded Twisted Pair Impedance Stabilization Networks

Model: ISN S8
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

ISN S8 is a shielded twisted-pair impedance stabilization network produced by Schwarzbeck, Germany and authorized for sale by EUTTEST in Shenzhen, China. It can be used in EMC labs to test the conductive emission of shielded CAT6 twisted-pair cables with up to 4 pairs of wires.

The ISN S8 can be used to perform voltage conducted emission tests on communication equipment or data processing equipment in accordance with relevant national standards such as CISPR 22 and GB9254.The equipment schematic diagram of the ISN S8 is shown in the figure below:

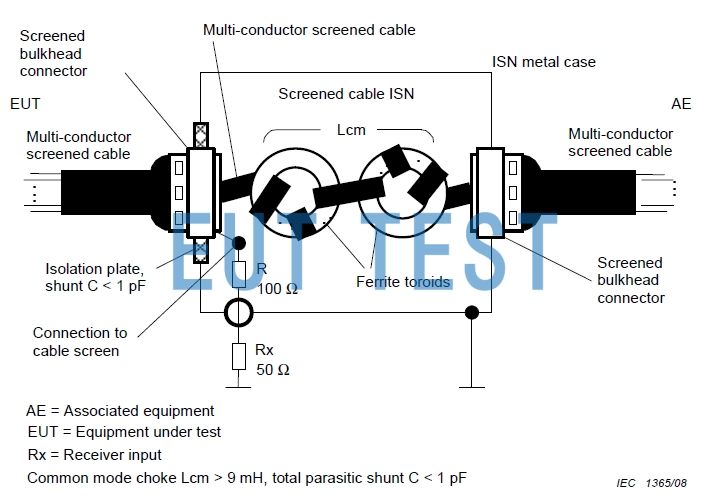

Device schematic for ISN S8

Device schematic for ISN S8

As can be seen from the diagram above, the ISN must provide sufficient separation from the device under test, the EUT, and the auxiliary equipment, the AE, which is the device or load with which the EUT communicates with the other devices. The conducted voltage interference signal from the circuit under test will be coupled to the BNC connector output on the top of the ISN S8, which will then be connected to an external EMI test receiver or spectrum analyzer to display the test data.

The ISN S8 is also compliant with the AAN device requirements of CISPR32, details of which can be found by clicking on the link below:

How to select ISNs and AANs by test standard requirements?

Technical data of the ISN S8:

<<<<提醒:左右滑动表格>>>>
Equipment ModelISN S8
manufacturerSchwarzbeck
Device nameImpedance Stabilization Network
Applicable cable typeShielded Twisted Pair
Frequency range150 kHz - 230 MHz
Type of cable under test4 x STP (shielded twisted pair)

100 Ω impedance

connectorRJ 45
Maximum line/ground voltage150 V DC 100 V AC
Maximum line current1A DC
impedance150 kHz - 30 MHz:: 150 Ω ±20 Ω

30MHz-230MHz: 150 Ω + 60 Ω/-45 Ω

phase angle0° ±20°
agentEuttest.com
test port50 Ω BNC
Maximum Test Port Voltage<20V AC
voltage divider150 kHz - 30 MHz:: 9.5 dB ±1 dB

30MHz-230MHz: 9.5 dB +4 dB/-2 dB

connectorRJ45-CAT6
size225 mm x 129 mm x 105 mm
weight1265g
Meet the standardCISPR 22

CISPR 32

EN 55022

<<<<提醒:左右滑动表格>>>>

Technical data charts:

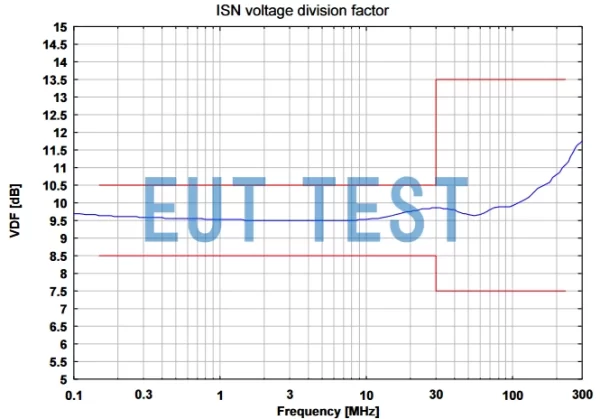

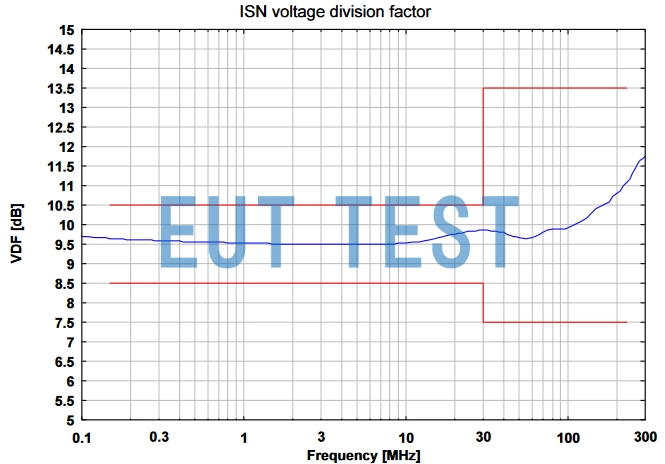

Voltage dividing factor graph for ISN S8

Voltage dividing factor graph for ISN S8

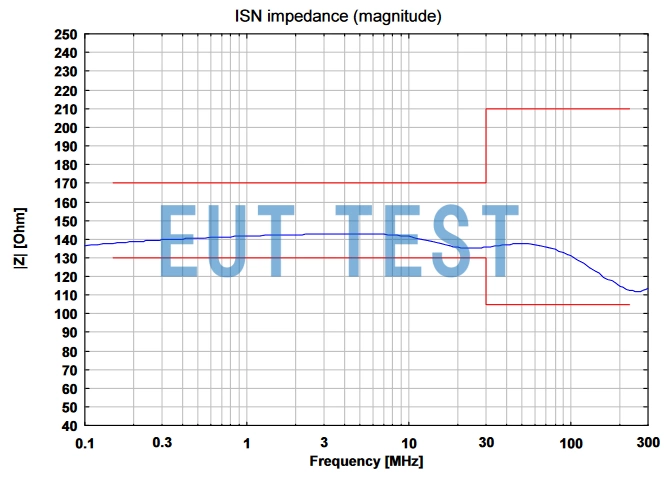

Impedance Curve of ISN S8

Impedance Curve of ISN S8
