EMCPARTNER INS Sequential Pulse Insulation Test Generator

INS Sequential Pulse Insulation Test Generator emcpartner
INS Sequential Pulse Insulation Test Generator emcpartner
Model: INS Sequential Pulse Insulation Test Generator
Type: Surge generator
Brand: EMC-Partner

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry： /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction：

The INS series of impulse insulation test generators manufactured by EMCPARTNER and distributed by EUTTEST include five different models: INS-1250-7K5, INS-1250-15K, INS-1250-22K5, INS-1250-30K and INS-0805. This sequence is intended to replace the discontinued INS-1250-7K5, INS-1250-15K, INS-1250-22K5MIG Sequence Pulse GeneratorThe

Technical Data of the INS Sequential Pulse Insulation Test Generator from EMCPARTNER:

The INS Sequential Pulse Insulation Test Generator consists of a number of sub-models, the technical specifications of which are listed below.

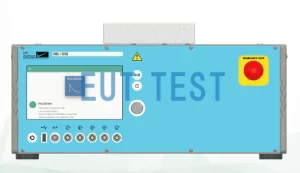

INS-1250-7K5 Technical Data:

INS-1250-7K5

<<<<提醒：左右滑动表格>>>>
INS-1250-7K5 Conformityiec60060-1, iec61010-1, iec61180.

IEC60335-1, IEC60664-1, latest version

Pulse capacitance250nF ±20%
Maximum voltage energy7.03 J
Output impedance40Ω, other impedances optional or customized
Voltage Adjustment200V- 7.5kV
calibration level500V- 7.5kV ±3%
Voltage Waveform1.2 μs ± 30 % / 50 μs ± 20 %
waveformR>1kΩ. L>50mH. C<6nF
SC Current Waveformundefined
Waveform Repetition Rate1 waveform/1 sec @ 3.5kV, 1 waveform/2 sec @ 7.5kV.
polaritiesPositive, negative, alternating
user interface7-inch touch screen
RAM1.2GHz,1GB RAM, 4GB memory
communications portNetwork Port, RS232,USB A
pulse counterProgrammable 29999
trigger outputBNC, MAX 10V Front Panel Outputs
Programmable BNCs4
input functionStart Test, End Test, EUT Failure, EUT Marking

External trigger input, emergency stop

output functionOperational status, safety status
emergency stopFront Panel IEC 60947-5-5, IEC 60204-1, ISO 13850
weight24kg
size45*57*19cm
rackmount19", 4U
INS-1250-7K5 Optional Accessories
CN-INS-500500Ω Output Impedance
CN-INS-X40Ω-4kΩ selectable output impedance
TC-STsafety circuit
TC-ADAPTERAdapter connection to TC-ST
EXT-INS-CON2m extension cord
warning lightRed/Green
emergency stop buttonEmergency stop button and 5m line
OPT-INS-MEASInternal Motherboard Peak V,I
V-PROBE-30KVoltage probe
TEMA3000hardware
<<<<提醒：左右滑动表格>>>>

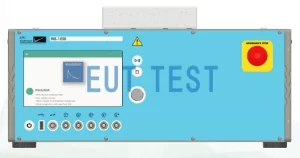

INS-1250-15K Technical Data:

INS-1250-15K

<<<<提醒：左右滑动表格>>>>
INS-1250-15K Conformityiec60060-1, iec61010-1, iec61180.

IEC60335-1, IEC60664-1, latest version

Pulse capacitance250nF ±20%
Maximum voltage energy28.12 J
Output impedance40Ω, other impedances optional or customized
Voltage Adjustment400V- 15kV
calibration level1KV- 15kV ±3%
Voltage Waveform1.2 μs ± 30 % / 50 μs ± 20 %
waveformR>1kΩ. L>50mH. C<6nF
SC Current Waveformundefined
Waveform Repetition Rate1 waveform/1 sec @ 3.5kV, 1 waveform/2 sec @ 15kV.
polaritiesPositive, negative, alternating
user interface7-inch touch screen
RAM1.2GHz,1GB RAM, 4GB memory
communications portNetwork Port, RS232,USB A
pulse counterProgrammable 29999
trigger outputBNC, MAX 10V Front Panel Outputs
Programmable BNCs4
input functionStart Test, End Test, EUT Failure, EUT Marking

External trigger input, emergency stop

output functionOperational status, safety status
emergency stopFront Panel IEC 60947-5-5, IEC 60204-1, ISO 13850
weight26 kg
size45*57*19cm
rackmount19", 4U
INS-1250-15K Optional Accessories
CN-INS-500500Ω Output Impedance
CN-INS-X40Ω-4kΩ selectable output impedance
TC-STsafety circuit
TC-ADAPTERAdapter connection to TC-ST
EXT-INS-CON2m extension cord
warning lightRed/Green
emergency stop buttonEmergency stop button and 5m line
OPT-INS-MEASInternal Motherboard Peak V,I
V-PROBE-30KVoltage probe
TEMA3000hardware
<<<<提醒：左右滑动表格>>>>

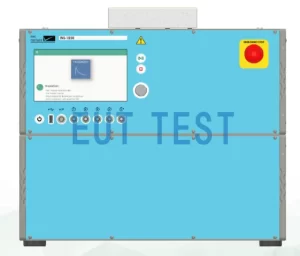

INS-1250-22K5 Technical parameters:

INS-1250-22K5

<<<<提醒：左右滑动表格>>>>
INS-1250-22k5 meets standardsiec60060-1, iec61010-1, iec61180.

IEC60335-1, IEC60664-1, latest version

Pulse capacitance250nF ±20%
Maximum voltage energy63.28 J
Output impedance40Ω, other impedances optional or customized
Voltage Adjustment600V- 22.5kV
calibration level1.5 KV- 22.5 kV ±3%
Voltage Waveform1.2 μs ± 30 % / 50 μs ± 20 %
waveformR>1kΩ. L>50mH. C<6nF
SC Current Waveformundefined
Waveform Repetition Rate1 waveform/1 sec @ 3.5kV, 1波形/2秒@22.5kV,
polaritiesPositive, negative, alternating
user interface7-inch touch screen
RAM1.2GHz,1GB RAM, 4GB memory
communications portNetwork Port, RS232,USB A
pulse counterProgrammable 29999
trigger outputBNC, MAX 10V Front Panel Outputs
Programmable BNCs4
input functionStart Test, End Test, EUT Failure, EUT Marking

External trigger input, emergency stop

output functionOperational status, safety status
emergency stopFront Panel IEC 60947-5-5, IEC 60204-1, ISO 13850
weight35kg
size45*57*43cm
rackmount19", 4U
INS-1250-22k5 Optional Accessories
CN-INS-500500Ω Output Impedance
CN-INS-X40Ω-4kΩ selectable output impedance
TC-STsafety circuit
TC-ADAPTERAdapter connection to TC-ST
EXT-INS-CON2m extension cord
warning lightRed/Green
emergency stop buttonEmergency stop button and 5m line
OPT-INS-MEASInternal Motherboard Peak V,I
V-PROBE-30KVoltage probe
TEMA3000hardware
<<<<提醒：左右滑动表格>>>>

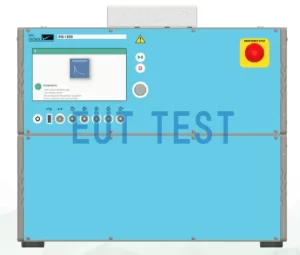

INS-1250-30K Technical Data:

INS-1250-30K

<<<<提醒：左右滑动表格>>>>
INS-1250-30K Conformityiec60060-1, iec61010-1, iec61180.

IEC60335-1, IEC60664-1, latest version

Pulse capacitance250nF ±20%
Maximum voltage energy112.5 J
Output impedance40Ω, other impedances optional or customized
Voltage Adjustment800V- 30kV
calibration level2 KV-30 kV ±3%
Voltage Waveform1.2 μs ± 30 % / 50 μs ± 20 %
waveformR>1kΩ. L>50mH. C<6nF
SC Current Waveformundefined
Waveform Repetition Rate1 waveform/1 sec @ 3.5kV, 1 waveform/2 sec @ 30kV.
polaritiesPositive, negative, alternating
user interface7-inch touch screen
RAM1.2GHz,1GB RAM, 4GB memory
communications portNetwork Port, RS232,USB A
pulse counterProgrammable 29999
trigger outputBNC, MAX 10V Front Panel Outputs
Programmable BNCs4
input functionStart Test, End Test, EUT Failure, EUT Marking

External trigger input, emergency stop

output functionOperational status, safety status
emergency stopFront Panel IEC 60947-5-5, IEC 60204-1, ISO 13850
weight40kg
size45*57*19cm
rackmount19", 4U
INS-1250-22k5 Optional Accessories
CN-INS-500500Ω Output Impedance
CN-INS-X40Ω-4kΩ selectable output impedance
TC-STsafety circuit
TC-ADAPTERAdapter connection to TC-ST
EXT-INS-CON2m extension cord
warning lightRed/Green
emergency stop buttonEmergency stop button and 5m line
OPT-INS-MEASInternal Motherboard Peak V,I
V-PROBE-30KVoltage probe
TEMA3000hardware
<<<<提醒：左右滑动表格>>>>

INS-0805 Technical Data:

INS-0805

<<<<提醒：左右滑动表格>>>>
INS-1250-30K Conformityiec 61180, iec 60255-27, iec 62052-11.

IEC 60834-1/2, EN 50470-1, latest edition

Voltage test level 0.5 J0.5 kV, 1 kV, 1.5 kV, 2 kV, 2.5 kV, 3 kV, 4 kV.

5 kV, 6 kV, 8 kV + 0 % / - 10 %

Pulse capacitance250nF ±20%
polaritiesPositive, negative, alternating
Output impedance500Ω±10%
Pulse Rise Time1.2μs ±30%
Pulse duration50μs ±20%
pulse energy (physics)0.5 J ±10%
repetition rate1s - 655s
INS-0805 Control Attributes
operating systemEMCPARTNER FIRMWARE
multilingualism10 types available
user interface7-inch touch screen
communications portNetwork Port, USB, RS485
BNC port to monitor surge voltage1V=4KV, accuracy 3%
Pulse voltage display0.5kV- 8kV, Accuracy 3%
peak detection functionusability
trigger outputBNC, MAX 12V
Trigger InputAutomatic, Manual, External BNC
pulse counterProgrammable 65535
emergency stopEmergency stop button, BNC input (EUT disabled)
weight1.5kg
size24*10*8.5cm
INS0805 to be used with generatorINS-1250-7K5,

INS-1250-15K.

INS-1250-22K5.

INS-1250-30K.

INS-1250-22k5 Optional Accessories
CN-INS-500500Ω Output Impedance
CN-INS-X40Ω-4kΩ selectable output impedance
TC-STsafety circuit
TC-ADAPTERAdapter connection to TC-ST
EXT-INS-CON2m extension cord
warning lightRed/Green
emergency stop buttonEmergency stop button and 5m line
OPT-INS-MEASInternal Motherboard Peak V,I
V-PROBE-30KVoltage probe
TEMA3000hardware
<<<<提醒：左右滑动表格>>>>

Contact EUTTEST for detailed parameters of the above options.
