Introduction：

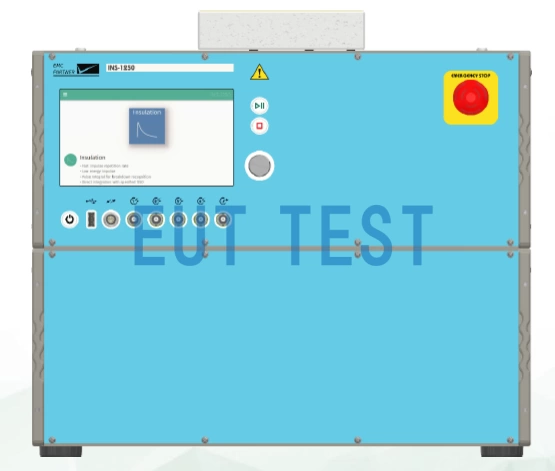

The INS-1250-30K is an INS Sequential Pulse Insulation Test Generator manufactured by EMCpartner (Switzerland) and distributed by EUTTEST for output voltages up to 30 KV. The 30 kV proof test cabinet can be placed (optional) at a maximum distance of 2 m from the main generator and includes a reliable safety interlock circuit. The optional LED warning lamps comply with IEC 61140, VDE 0140-1. The 1 Gbps Ethernet port of the INS generator can be connected to a computer over an optional 10 m fiber optic cable.

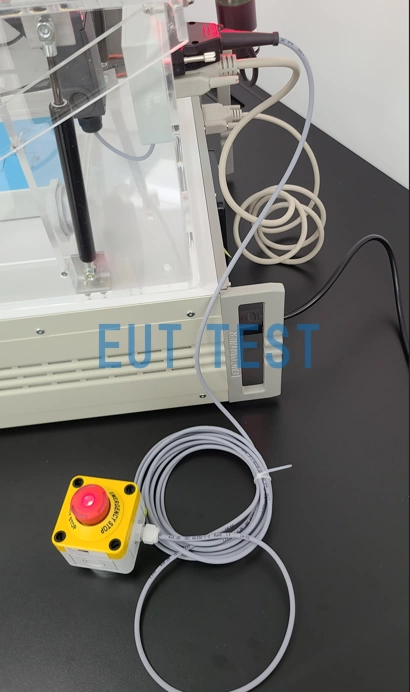

Safety Test Interlock Circuit
The new INS series from EMCpartner is another breakthrough in insulation technology.With a pulse repetition frequency of 1 pulse per second up to 3.5 kV and 1 pulse every 8 seconds at 30 kV, the INS is probably the fastest insulation test system in the world.The 7.5 kV model can then be upgraded to 15 kV and the 22.5 kV model to 30 kV. Output impedance is selectable from 40 Ω - 4 kΩ (default 40 Ω).
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Equipment Model | INS-1250-30K |
| manufacturer | EMCpartner |
| agent | EUTTEST |
| Meet the standard | IEC60060-1, IEC61010-1, IEC61180, IEC60335-1, IEC60664-1, latest version |
| Test items | VIOSM = maximum inrush isolation voltage VISO = isolation withstand voltage VIOTM= Maximum Transient Isolation Voltage |
| Pulse capacitance | 250nF ±20% |
| Maximum voltage energy | 112.5 J |
| Output impedance | 40Ω, other impedances optional or customized |
| Voltage Adjustment | 800V- 30kV |
| calibration level | 2 KV-30 kV ±3% |
| Voltage Waveform | 1.2 μs ± 30 % / 50 μs ± 20 % |
| waveform | R>1kΩ. L>50mH. C<6nF |
| SC Current Waveform | undefined |
| Waveform Repetition Rate | 1 waveform/1 sec @ 3.5kV, 1 waveform/2 sec @ 30kV. |
| polarities | Positive, negative, alternating |
| user interface | 7-inch touch screen |
| RAM | 1.2GHz,1GB RAM, 4GB memory |
| communications port | Network Port, RS232,USB A |
| pulse counter | Programmable 29999 |
| trigger output | BNC, MAX 10V Front Panel Outputs |
| Programmable BNCs | 4 |
| input function | Start Test, End Test, EUT Failure, EUT Marking External trigger input, emergency stop |
| output function | Operational status, safety status |
| emergency stop | Front Panel IEC 60947-5-5, IEC 60204-1, ISO 13850 |
| weight | 40kg |
| size | 45*57*19cm |
| rackmount | 19", 4U |
The INS is a serial model that includes the INS-1250-7K5, INS-1250-15K, INS-1250-22K5, and INS-1250-30K;
Generator:
- INS-1250-7K5 The following is an example of a customized output for a 7.5 kV impulse 1.2/50 μs, 40 Ω and/or custom output.
- INS-1250-15K The following is an example of the type of power supply that can be used with a 15 kV impulse 1.2/50 μs, 40 Ω and/or custom output.
- INS-1250-22K5 The following is an example of a customized output for a 22.5 kV impulse 1.2/50 μs, 40 Ω and/or custom output.
circuit module
- INS-0805, 500 ohm output/ 0.5 J with 0.5 kV, 1 kV, 1.5 kV, 2 kV, 2.5 kV, 3 kV,4 kV, 5 kV, 6 kV and 8 kV test levels (this page)
Matching Networks:
CN-INS-500: 500 Ω, or 40 Ω direct output from the generator.
CN-INS-X: 40Ω-4kΩ customizable
Other optional modules:
OPT-INS-MEAS: Voltage and Current Test Boards
V-PROBE-30K: Voltage Probe
EXT-INS-CON: test chamber
TC-ST: Safety circuits
TC-ADAPTER: Conversion Circuitry
WARNING-LAMP: Hazard warning lamps
EMERGENCY-STOP: Emergency stop button
TEMA3000: Test Software
INS serial products have replacedMIG sequenceMultiple models of products, contact us for more information.
Reference: Digital Isolators - High Voltage Enhanced Isolation: Safety Regulations, Standard Definitions and Test Methods
