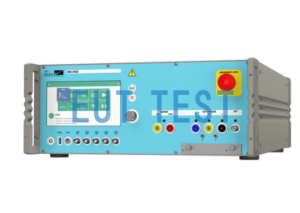

The IMU-MGS is a modular conducted immunity generator for combined waves manufactured by EMCPARTNER in Switzerland and sold by EUTTEST in Shenzhen. The IMU-MGS is a modular test system with a color touch screen and intuitive software. Integrated help with graphics guides the user through setup and operation quickly and efficiently. The system is used for CE marking tests in the European Union. Each system can be individually configured and easily expanded. 10 modules are available for the IMU-MGS. All modules can be easily added or removed by the user in the field. The generators can be configured to meet IEC/EN and ANSI test requirements. Electromagnetic compatibility (EMC) testing for surges up to 5kV and EFTs up to 5kV can be freely configured by the user.The IMU-MGS is programmed using the default parameters of the basic IEC standards.The IMU-MGS also contains a library of tests that contain basic and generic requirements, and can be automated by selecting the standard from the instrument panel or from within the software.The IMU-MGS can be configured to meet the IEC/EN and ANSI testing requirements.The IMU-MGS has 10 modules available.
IMU-MGS can be used for conducted immunity testing of most industry standards, covering the following test contents. For detailed technical parameters of each test item, please click the following link to inquire.
- Lightning surge/CWG immunity : 5kV
- EFT / Pulse Group Immunity: 5kV
- Common mode conducted immunity: 35V/330V
- AC and DC interruption immunity: 16A
- AC Voltage Dips DIPS and Variation Immunity: 16A
- Differential mode voltage/current immunity
- ESD static immunity: 16kV
- TEMA3000 Test Software
IMU-MGS can be used to test standards:
IMU-MGS can be used in many industries for EMC basic standards and product standards, the detailed configuration needs to be configured according to the different standards to configure different options, you can directly provide the test standard number to contact EUTTEST to consult the EMCPARTNER product price and parameter configuration.
- IEC 61000-6-1 Electromagnetic compatibility (EMC) - Part 6-1: General standard - Immunity criteria for residential, commercial and light industrial environments
- IEC 61000-6-2 Electromagnetic compatibility (EMC) - Part 6-2: General standard - Immunity standard for industrial environments
- IEC 60255-26 Measuring relays and protective devices - Part 26: Electromagnetic compatibility requirements
- IEC 60571 Railway applications - Electronic equipment for use on rolling stock
- EN 50121-3-2 Railway applications - Electromagnetic compatibility - Part 3-2: Rolling stock - Equipment
- EN 50121-4 Railway applications - Electromagnetic compatibility - Part 4: Emission and immunity of signaling and telecommunication equipment
- EN 50155 Railway Applications. Rolling stock. Electronic equipment
- IEC 61851-22 Conductive charging system for electric vehicles - Part 21-1 EMC requirements for on-board chargers for electric vehicles for AC/DC power supply conduction connections
- IEC 61851-21-2 Conductive charging systems for electric vehicles - Part 21-2: Requirements for the conductive connection of electric vehicles to an AC/DC power supply - EMC requirements for non-vehicle mounted electric vehicle charging systems
- IEC 60601-1-2 Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Incidental standards: Electromagnetic interference - Requirements and tests
- IEC 61000-4-2 Electromagnetic compatibility (EMC) - Part 4-2: Test and measurement techniques - Electrostatic discharge immunity test
- IEC 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Test and measurement techniques
- IEC 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Test and measurement techniques - Surge immunity test
- IEC 61000-4-8 Electromagnetic compatibility (EMC) - Part 4-9: Test and measurement techniques - Immunity test for industrial frequency magnetic fields
- IEC 61000-4-9 Electromagnetic compatibility (EMC) - Part 4-9: Test and measurement techniques - Pulsed field immunity test
- IEC 61000-4-11 Electromagnetic compatibility (EMC) - Part 4-11: Test and measurement techniques - Voltage dips, short interruptions and voltage variations immunity test
- IEC 61000-4-16 Electromagnetic compatibility (EMC) - Part 4-16: Test and measurement techniques - Test of immunity to conducted common mode interference in the frequency range 0 Hz to 150 kHz
- IEC 61000-4-19 Electromagnetic compatibility (EMC) - Part 4-19: Test and measurement techniques - Immunity test for AC power ports to conducted and differential mode interference and signals in the frequency range 2 kHz to 150 kHz
- IEC 61000-4-29 Electromagnetic compatibility (EMC) - Part 4-29: Test and measurement techniques - Voltage dips, short interruptions and voltage variations in immunity testing of DC input power ports
