IGUU 2916 Pulse Calibration Generator for CISPR16 Compliant EMI Receivers

Model: IGUU 2916
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

IGUU 2916 is a general-purpose pulse calibration signal generator produced by Schwarzbeck of Germany and authorized to be sold by EUTTEST of Shenzhen, designed for pulse weighting and overload testing of EMI measurement receivers, including the amplitude relationship calibration and repetition frequency calibration of EMI receivers.

Calibratable frequency bands:

The 2916 generator can be used for Bands A, B, C, D ( 9 kHz - 1000 MHz ) as required by CISPR 16.

<<<<提醒:左右滑动表格>>>>
Bangd A9 kHz - 150 kHz13.5 µVs
Bangd B150 kHz - 30 MHz0.316 µVs
Bangd C / D30 - 1000 MHz0.044 µVs
<<<<提醒:左右滑动表格>>>>

The EMI receiver calibration pulse generators IGLK 2914 (band A, 9 kHz-150 kHz and band B, 150 kHz-30 MHz) and IGU 2912 (band C/D, 30 MHz-1 GHz) from Schwarzbeck have been recognized as the global standard for decades. Its mechanically insulated contacts can generate spectrums in excess of 1 GHz with high voltage and accuracy. The generator covers the complete frequency range from 9 kHz to 1 GHz. Obviously, both relay contact generators (main generators) with 1-dB amplitude settings have been slightly modified, since there is still no alternative.

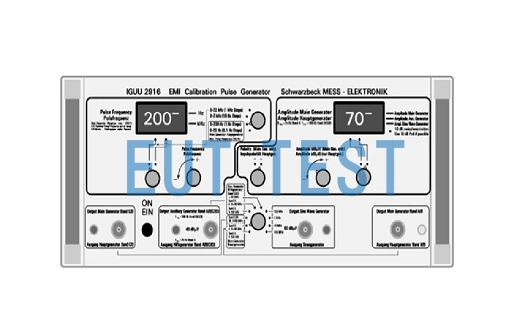

Front Panel Operator Interface of IGUU 2916

Front Panel Operator Interface

This equipment is complex to operate, please contact EUTTEST for training related information. Training is not available for equipment not sold by our company.

Difference between IGUU 2916 and IGUU 2918:

Schwarzbeck now offers the following two pulse calibration generators for EMI receivers. Please select the appropriate generator host configuration according to the parameter differences in the table below.

2024 2916 has been marked as discontinued. Please purchase the IGUU 2918 Pulse calibration signal generator test equipment.

<<<<提醒:左右滑动表格>>>>
IGUU 2916IGUU 2918
Available frequency9kHz-1GHz9kHz-1GHz
Input Level and Frequency MethodskeystrokesKeys and Keyboards
Auxiliary generator output pulse repetition frequency0.1 Hz- 20 kHz0.1 Hz - 1 MHz
Auxiliary generator output pulse repetition frequency resolution0.1 Hz settable from 0 - 20 Hz

1 Hz settable from 0 - 200 Hz

10 Hz settable at 0 - 2 kHz

1 kHz settable at 0 - 20 kHz

Full frequency band settable: 0.1 Hz
Measure the availability of high resolution impulse response curvesno configurationusability
sine wave generator

(100 kHz, 1Mhz, 10 MHZ, 100 MHz)

internally installedusability
Testing CISPR Detectors

Based on CISPR 16-1-1: 2010

chapter 7.5.3

no configurationusability
<<<<提醒:左右滑动表格>>>>

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Generator ModelIGUU 2916
manufacturerSchwarzbeck
agentEUTTEST
Pulse frequency range of the main generator0-20 Hz in 0.1 Hz steps

0-200 Hz in 1 Hz steps

Pulse frequency accuracy of the main generator2*10^(-4) Hz
Pulse shape of the main generatorrectangles
Pulse width of the main generatorBand A: 270ns

Band B: 6ns

Band C/D: 0.3ns

Polarity of the main generator pulsePositive and negative switchable
Level of the main generator pulseBand A/B: 10 - 70dB, in 1dB steps.

Band C / D: 0 - 60dB, in 1dB steps

Training contentEUTTEST provides in-home training on how to calibrate receivers using the IGUU 2916.
Maximum output voltage of main generator: 50Ω80V-110V
Pulse area for main generator 60dB attenuator settingCorresponds to CISPR 16 standard, equivalent to 1 mVrms at 50Ω, standard Q.P. - Detector.
Main generator Frequency flatnessBand A, Band B upper frequency limit: ±0-0.5dB

Band C:

30MHz-100MHz: ±0.5dB

200MHz-800MHz: 0.5-1dB

800MHz-1GHz: ±0-1dB

Main Generator Level AccuracyBand A,B: ±0.5dB at 50kHz and 1MHz

Band C/D: ±0.8dB at 100MHz

Optional AccessoriesAutomated Test Software and its N Connector Combo Kit
size447*180*460mm
weight12kg
Auxiliary generator related parametersPlease see the table of differences in the previous section has been listed and will not be shown again here.
<<<<提醒:左右滑动表格>>>>
