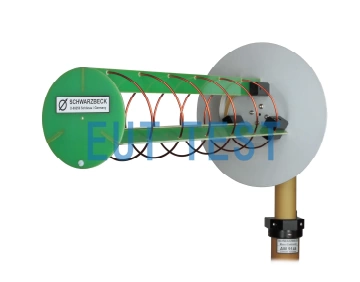

HLX 0810-RHCP Schwarzbeck Right-handed Polarized Helical Antenna

Name: HLX 0810-RHCP
Brand: Schwarzbeck
SKU: hlx-0810-rhcp
Price: 1088 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

HLX 0810-RHCP Schwarzbeck Right-handed Polarized Helical Antenna

Antenna Gain Plot for HLX 0810-RHCP Right-Handed Polarized Helical Antenna - Units - dBic

Model: HLX 0810-RHCP

Type: Logarithmic spiral antenna

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards: /

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

HLX 0810-RHCP is a right-handed polarized helical antenna manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation. The circularly polarized helical antenna comes with an aluminum reflector and N-type connector and can be used for RF receiving and transmitting applications in the frequency range of 600MHz-1.1GHz.

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Antenna Model	HLX 0810-RHCP
Antenna name	Right-handed polarized helical antenna
manufacturer	Schwarzbeck
agent	Shenzhen EUTTEST
Test frequency range	750MHz-1050MHz
Maximum available frequency range	600MHz-1.1GHz
Antenna Gain Range	6-12dBic
Antenna Coefficient Range	17 dB/m to 20 dB/m
impedance	50Ω
standing wave ratio (physics)	1.5-2.2
3dB wave width	56°-33°
6dB wave width	70°-50°
Maximum input power	300W
size	240 mm * 500 mm * 240 mm
weight	3.1 kg
Recommended Antenna Mounts	AM 9144 Antenna tripod AA 9202 or AA9203 adapter

<<<<提醒：左右滑动表格>>>>

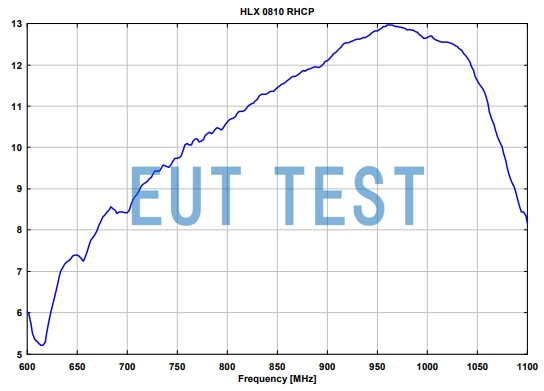

Gain graph:

Antenna gain plot for a right-handed polarized helical antenna-units-dBic

Product Recommendation:

In addition to this helical antenna, we also offer the following two antennas with the same type of polarization (right-handed polarized RHCP or left-handed polarized LHCP):

HLX 0810-LHCP Left-rotation polarized helical antenna , Test frequency 750MHz-1050MHz.
CLSA 0110 - RHCP Right-handed polarized helical antenna , test frequency 1GHz-10GHz.
CLSA 0110 - LHCP Left-rotation polarized helical antenna , test frequency 1GHz-10GHz.
