HI-6053 Introduction:
The HI-6053 from ETS Lindgren USA is a battery operated electric field probe, the HI-6053 replaces the older HI-6153. The HI-6053 provides broadband frequency coverage and wide dynamic range to meet most test requirements, to take advantage of this capability the HI-6053 RF Field Probe is designed as a single-range readout for continuous readings over the entire dynamic range for continuous readings. Data values for each axis (X, Y, and Z) can be read individually or summed.ETS Lindgren's HI-6053 Electric Field Probe is a fully intelligent transducer that provides fast and accurate measurements of electric fields with industry-leading performance specifications. Optical coupling to a variety of readout options makes this probe ideally suited for a wide range of field monitoring applications.
This field probe contains user replaceable/rechargeable batteries.
The HI-6100 Field Monitor provides manual functions and programmed control via IEEE-488 and RS-232 serial data interfaces. Up to four field probe readings can be displayed simultaneously.
The EMCenter™ modular RF platform together with the EMSENSE™ interface card can be used as a field monitor with the HI-6000 series field detectors, in addition to the functionality of a system level platform.
For direct connection to a PC, the HI-4413P serial or HI-4413USB interface can be used.
My company provides the United States ETS-LINDGREN all products agent customs clearance import sales and after-sales service, consulting quotes and technical parameters, please contact EUTTEST sales consulting.
Characteristics of the HI-6053 Field Intensity Probe:
- Individual and summed axis values
- Dynamic range: 2.0 to 800 V/m (single range)
- User replaceable/rechargeable batteries
- A2LA accredited calibration report
- MIL standard specifications apply:
- MIL-STD 461 F Radiation Sensitivity (RS)
- Applies to automotive specifications:
- SAE J1113/27
- GM W 3091/3097/3101
- Ford FMC1278
- Works with most third-party immunity software EMC32, etc.
The main technical parameters of HI-6053:
| Probe Model | HI-6053 |
| manufacturer | ETS Lindgren |
| Domestic suppliers | Shenzhen EUTTEST |
| Frequency range: | 10 MHz-40 GHz |
| physical interface | FSMA connector duplex fiber (200 micron multimode) |
| batteries | (iv) Rechargeable NiMH AAA |
| Operating Temperature Range | 10 to 40 °C (50 to 104 °F);5 - 95% relative humidity non-condensing |
| Battery life | >30 consecutive hours |
| Battery Charger | 100-240 VAC universal input; 3 hours charge from full depletion |
| weight | 0.36 kg (12.64 oz) |
| Dimensions (L x W) | 43.8 cm x 5.7 cm (17.24 inches x 2.24 inches) |
| mounting | 1/4" - 20 UNC female thread |
| sensing | Isotropic (X, Y and Z axis readings) |
| Calibrate the frequency response: | 10 MHz-18 GHz 0.9 dB 18-40 GHz 1.1 dB |
| Frequency Response: | 10-100 MHz (+3.0, -4.0 Db) 100 MHz-1 GHz (+3.0, -0.50 dB) 1-18 GHz (+4.0, -2.0 dB) 18-40 GHz (+3.5, -4.5 dB) |
| dynamic range | 2-800 V/m (single range) |
| resolution (of a photo) | 0.01 V/m |
| isotropic deviation | 1.0 dB<18 GHz |
| linearity | 0.5 dB |
| Sampling rate (typical) | Up to 70 samples per second |
| Overload tolerance | 1500>V/m CW |
| standard configuration | A2LA Traceable Calibration Report suitcase user manual Bulkhead connectors (2) Rapid Battery Charger Piercing Needle Assemblies 10m fiber optic cable |
| option | Options require additional purchase Contact EUTTEST for more information: Fiber-optic extension cable (H-491106-xx) Puncture needle holder assembly (H-491269) Additional probe bracket above probe holder (H-491276) EMCenter interface card (125446) HI-4413 USB Optical to USB Interface |

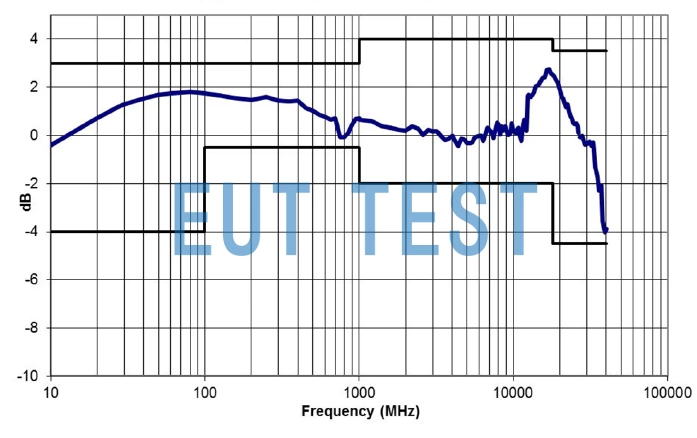

Frequency Response Curve of HI-6053

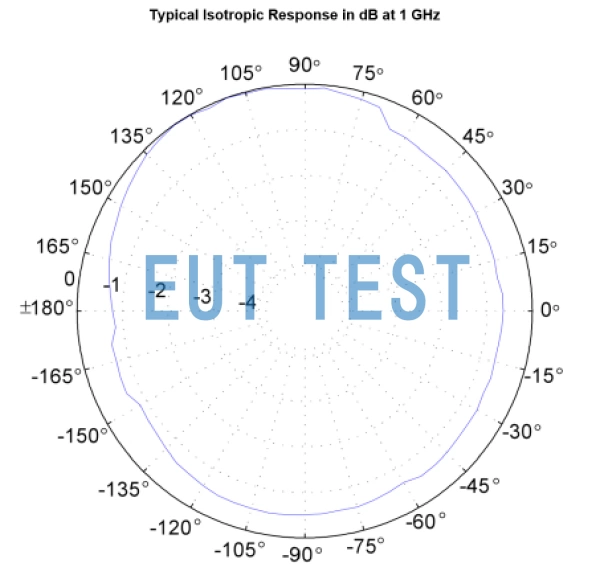

Typical Isotropic Response of HI-6053 Typical Isotropic Response@1GHz
Isotropic response curve of HI-6053 at 10GHz, 18GHz Contact us for information.
