HHDF 5110A Schwarzbeck 30MHz Handheld Direction Finding Antenna

Model: HHDF 5110A
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

The HHDF 5110A is a 30MHz handheld direction finding antenna manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation. This handheld direction finding antenna measures the electric and magnetic fields in the environment and is designed to be used with a suitable portable EMI receiver or spectrum analyzer to locate the position of the radio's electromagnetic field transmitter. The antenna is ruggedly constructed for outdoor use and works well even under harsh environmental conditions. Since its E-plane and H-plane pointing patterns are almost equal, it can measure horizontal and vertical polarization very well.

Technical Parameters.

<<<<提醒:左右滑动表格>>>>
Model numberHHDF 5110A
Device name30MHz Handheld Direction Finding Antenna
manufacturerSchwarzbeck
agentShenzhen EUTTEST
impedance50Ω
3dB flap width - magnetic field94°
electric fieldomnidirectional antenna
Antenna factor - magnetic field-15 dB/Ohm to 45 dB/Ohm
Antenna factor - electric field36.5 dB/m to 96.5 dB/m
Antenna pole diameter22 mm
size494 mm * 300 mm * 40 mm
weight900 grams
Optional accessoriesHHDF 5110B : 30MHz-300MHz

HHDF 5110C: 300MHz-1GHz

HHDF Handle

CCA: Packing box

<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

In the figure below, the left Y-axis is the magnetic field coefficient, and the right Y-axis is the electric field coefficient , please select the appropriate coefficient to compensate for the application according to the electromagnetic field test method.

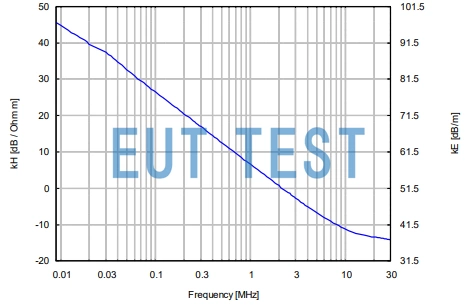

Antenna Coefficient Plot for HHDF 5110A Measured Electric and Magnetic Fields

Plot of antenna coefficients for measuring electric and magnetic fields
