HFS 1546 Schwarzbeck Active Magnetic Field Probe

Model: HFS 1546
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

The HFS 1546 is a 50 mm shielded active magnetic field probe manufactured by Schwarzbeck (Germany) and distributed by EUTTEST, in fact it is a type of ring antenna that covers the frequency range 9 kHz - 30 MHz (80MHz). The probe is equipped with a smaller ring antenna diameter and a new amplifier with 10 times the transistor speed, which extends the upper frequency limit of the probe to 400 MHz, thus allowing frequency-selective measurements of the very low limit line requirements of medical implants.

Applications:

Typical applications for this probe are frequency selective H-field measurements inside and outside buildings and rooms using a test receiver or spectrum analyzer. The wide frequency and dynamic range of this probe covers the limit requirements for human protection starting from about 4.5 MHz, as well as the very low limits for medical implants (pacemakers). Field sources are AM and FM radio and TVstations.

If you need a 60cm diameter loop antenna you can also choose the following models:

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberHFS 1546
Frequency range:9 kHz - 30 MHz
Ring Diameter:500mm
Connectors:N-female 50 Ω
Electric field antenna coefficients:20 dB/m
Magnetic field antenna coefficients:-31.5 dB/Ωm
Agents:EUTTEST.COM
Built-in attenuator:0-33dB in 3dB steps
Maximum field strength:30-130 dBµV/m ,QP / 9 kHz

8-130 dBµV/m ,AV / 200Hz

Built-in battery:12 V NiMH 1.9 Ah

Charger: ACS 110

Size:520 x 560 x 60 mm
Weight:1.6kg
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

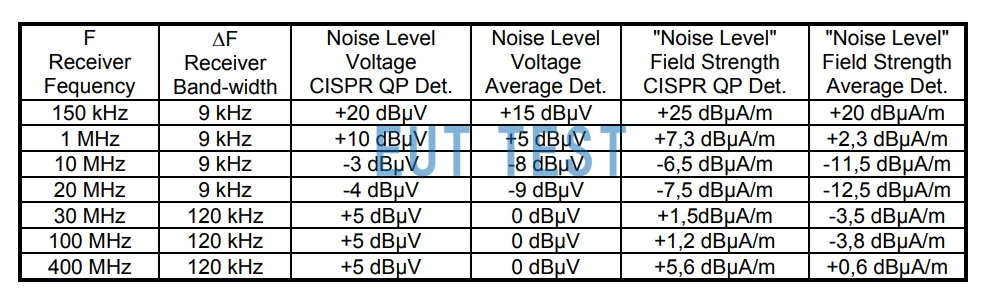

HFS 1546 Bottom Noise Data for Different Detector and Bandwidth Settings at EMI Receiver

Bottom noise data at EMI receivers with different detector settings and bandwidths

Magnetic Field Antenna Coefficient Plot for HFS 1546

Magnetic field antenna coefficient plot
