HFRA 5164 Schwarzbeck Passive Magnetic Field Ring Antenna

Model: HFRA 5164
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

HFRA 5164 is manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen.Passive magnetic field loop antennasThe antenna is designed to generate small to medium sized magnetic fields in the frequency range of 10 kHz to 120 MHz. We recommend this antenna for testing the IEC 61000-4-39 standard for immunity testing of medical devices from 150 kHz to 26 MHz. The antenna can be placed 50 mm above the surface of the EUT, and is supplied with a standard 50 mm spacer as an option, see Technical Data below.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Antenna ModelHFRA 5164
manufacturerSchwarzbeck
agentEUTTEST
Test frequency range10kHz-120MHz
Coil Direct100mm
Number of coils3 laps
Input impedance50Ω
Maximum Input Current5 minutes: 12A;

Continuous input: 8A;

Magnetic field strength at 1A current input10.61 A/m
Input ConnectorBNC
Antenna Size158*112*45mm
weight250g
optionAM9144 : Antenna Mounts

HFRA-Spacer50 : 50mm Fixed Test Interval Accessory

<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

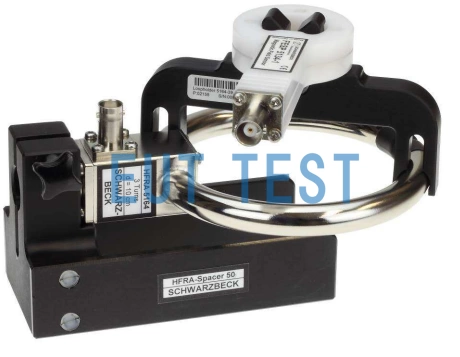

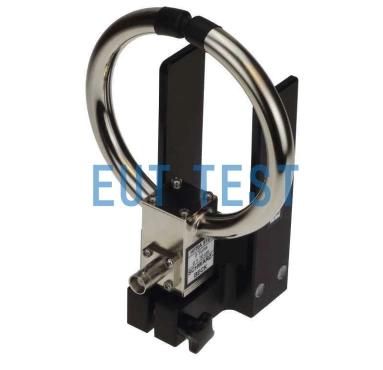

Installation view of HFRA 5164 and option HFRA-Spacer50

Installation diagram for option HFRA-Spacer50

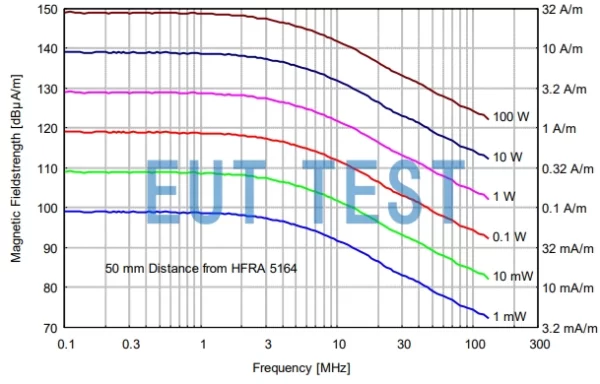

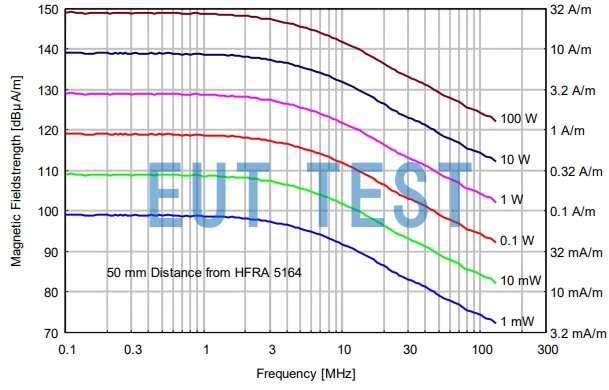

Input power of HFRA 5164 vs. generated magnetic field strength

Plot of input power versus generated magnetic field strength
