Introduction:

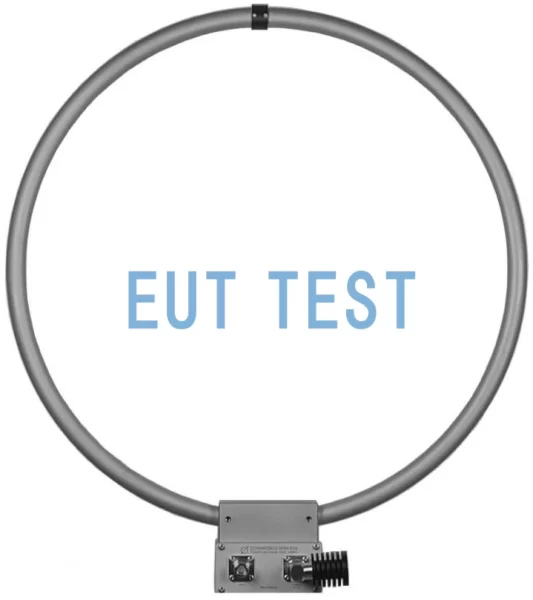

The HFRA 5149 is a magnetic field transmitter loop antenna manufactured by Schwarzbeck (Germany) and distributed by EUTTEST. The antenna is capable of inputting 100 W of power for a short period of time, and can be operated continuously at 30 W for extended periods of time. The antenna needs to be terminated with a power consuming 50 Ω/20 W load, noting that the load is part of the antenna and cannot be removed during testing. It is sufficient for the maximum output of a laboratory power generator.
Technical parameters:
Model number | HFRA 5149 |
manufacturer | Schwarzbeck |
agent | Euttest |
Ring antenna name | Passive magnetic field loop antenna - launch |
nominal frequency | 9kHz-30MHz |
impedance | 50Ω |
SWR | < 2 (0.02 - 20 MHz) < 4 (0.009 - 30 MHz) |
Required annexes | 50 Ω / 20 Watt |
size | 515 x 585 x 80 mm |
weight | 1250 g |
support sth. | 3/8" connector Mates with AM9144 tripods |
Recommended Test Configuration:

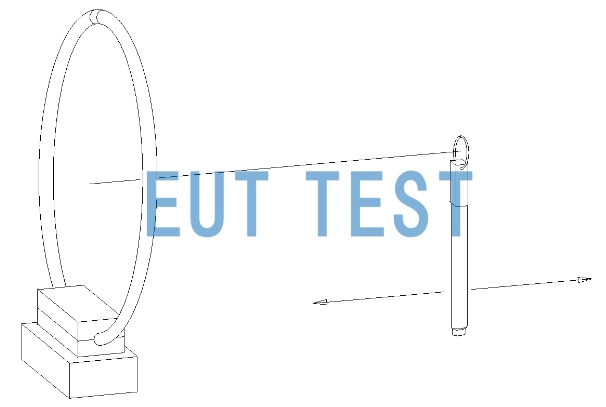

As shown in the figure below, this antenna can be tested in conjunction with the receiver antenna HFS 1546, where the 5149 will be used for power input and radiate a magnetic field to the front of the antenna, and the HFS 1546 will be placed in a different test position to receive the field.
![Test Connection Diagram of HFRA 5149 with Receiver Antenna HFS 1546](https://www.euttest.com/wp-content/uploads/2024/09/hfra-5149-hfs-1546.png)
Test Connection Diagram with Receiver Antenna HFS 1546

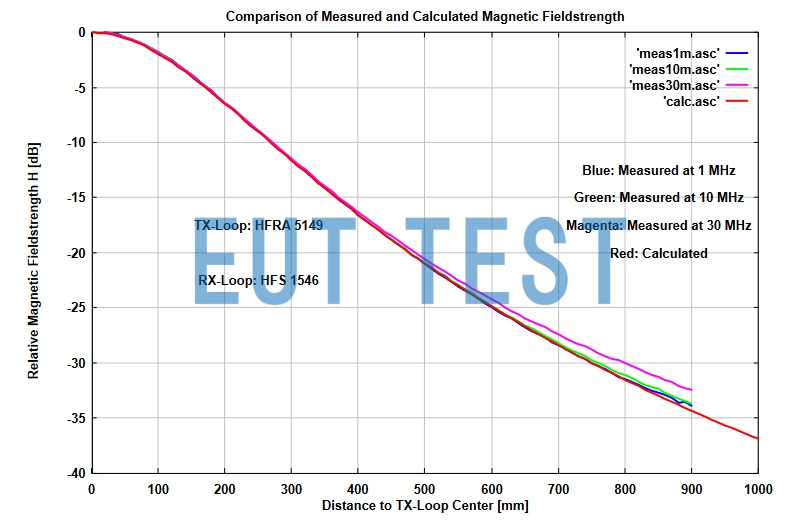

![Magnetic Field Strength of HFRA 5149 with HFS 1546 at Various Test Distances](https://www.euttest.com/wp-content/uploads/2024/09/hfra-5149-hfs-1546-1.png)
Magnetic field strength at different test distances with HFS 1546
