Introduction:
The HA 9250-818 is a linearly polarized standard gain antenna manufactured by Schwarzbeck, Germany, and authorized by EUTTEST Shenzhen for sales and after-sales service. The antenna can be used for immunity testing in the frequency range 8GHz-18GHz with high field strength requirements or for reception applications with high sensitivity.
This antenna is configured with a high power N-female connector for maximum power handling. The main features of this antenna are the almost constant high gain, high directivity and octave bandwidth.
Technical parameters:
Model number | HA 9250-818 |
producers | Schwarzbeck |
agent | EUT TEST |
Typical frequency range | 8-18 GHz |
gain | Typical 20 dBi |
radiance factor | Typical 29 - 37 dB/m |
Nominal Impedance | 50 Ω |
continuous power | 300 W |
VSWR | Typical values <2 |
3 dB beamwidth E-plane: | Typical 15 |
3 dB beamwidth H-plane: | Typical 16 |
connector | N |
size | 156 x 115 x 240 mm |
weight | 0.7kg |

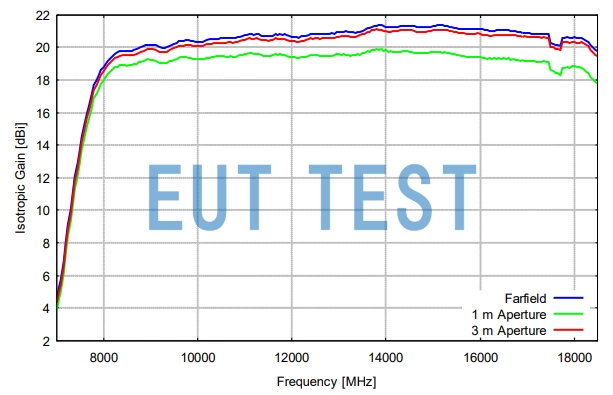

Gain of HA9250-818:
When you purchase this antenna from us, we will provide the gain data of this antenna in all frequency bands for EMC testers to inquire and use.
Other optional antenna products of the same sequence:
This antenna is one of Schwarzbeck's HA 9250 serial horn antennas. If this antenna does not meet your requirements, we offer the following antennas as options:
- HA 9250-12 Test frequency 1 GHz - 2 GHz.
- HA 9250-24 Test frequency 2 GHz - 4 GHz.
- HA 9250-48 Test frequency 4 GHz - 8 GHz.
- BBHA 9170 Test frequency 14 GHz -40 GHz.
