Introduction:

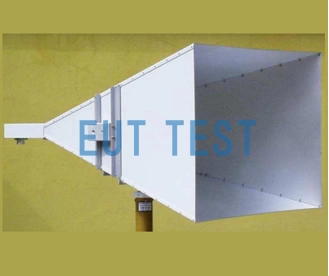

The HA 9250-24 is a linearly polarized, standard gain horn antenna from Schwarzbeck, Germany, which is distributed by us. Schwarzbeck has configured the antenna with a 7/16 high power connector, which ensures that EMC testers can inject 1-2 kW of RF power into the 1.9 - 4.6 GHz frequency range. We also recommend this antenna for radiated immunity testing at the 1 m and 3 m test positions in the darkroom.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Model number | HA 9250-24 |
manufacturer | Schwarzbeck Schwarzbeck |
agent | Shenzhen EUTTEST |
Test frequency range | 1.9 GHz - 4.6 GHz |
Antenna Gain | 20 dBi |
radiance factor | 11-17 Db/m |
6dB wave width | 22-24° |
Maximum input power | 1-2 kW |
Antenna mounting dimensions | 3/8 in. |
Antenna Size | 600*446*952 mm |
weight | 5.8 kg |

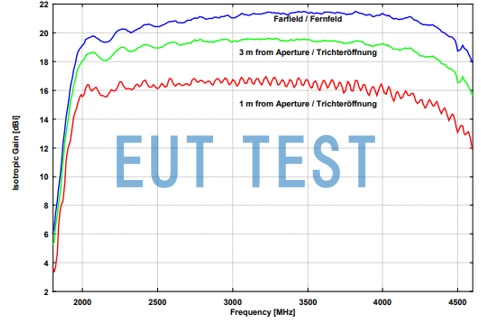

HA9250-24 Gain Curve Diagram:

Antenna gain graphs at test distances of 1 meter and 3 meters
Other optional antenna products of the same sequence:
This antenna is one of Schwarzbeck's HA 9250 serial horn antennas. If this antenna does not meet your requirements, we offer the following antennas as options:
- HA 9250-12 Test frequency 1 GHz - 2 GHz.
- HA 9250-48 Test frequency 4 GHz - 8 GHz.
- HA 9250-818 Test frequency 8 GHz - 18 GHz.
