Introduction：
FSHPE is a passive and uniaxial 300MHz handheld electric field probe manufactured by SCHWARZBECK, Germany and licensed to EUTTEST, Shenzhen, China. It provides a fast and accurate safety assessment of the measurement environment and is suitable for non-ionizing radiation measurements as defined by standards such as BGVB11, ICNIRP, IEEE C95.1, FCC 96-236 and others. It can be tested and used with the following brands of spectrum analyzers:
- Rohde & Schwarz FSH Sequence
- Keysight Fieldfox Sequence
- Anritsu Sitemaster, LMR-Master, Spectrum Master Sequences
- Aeroflex 9100 Handheld Spectrum Analyzer Sequence
- more
This probe can be used with the popular handheld spectrum analyzers FSH3/6 and FSH4/8 from Rohde & Schwarz or similar devices. The RF transparent antenna cover protects the probe from dust and moisture. The lightweight construction of the probe allows it to be mounted directly on the spectrum analyzer. In addition, the probes can be fixed manually with a 50 mm shaft (sweep method) or with a 22 mm tube on a mast or tripod (rotary or grating method).
If you want to measure the magnetic field, please purchase it: schwarzbeck FSHPH
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | FSHPE |
| Product name | 300MHz Handheld Magnetic Field Probe |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUTTEST |
| Test frequency range | 9kHz - 300MHz |
| Maximum Test Frequency Range | 9kHz - 500MHz |
| Test Connectors | N-Connector |
| Probe coefficient - electric field | 30 dB/m to 130 dB/m |
| size | 510 mm * 145 mm * 80 mm |
| weight | 700 grams |
Graph of related technical parameters：

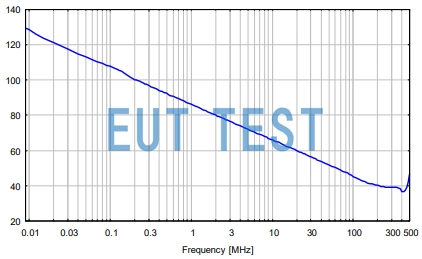

Measurement of antenna coefficients of electric fields
