FMZB 1513 Schwarzbeck Active Ring Antenna 50cm Diameter

Model: FMZB 1513
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Tip: This device has been marked as discontinued in 2024!

Recommended alternative equipment:FMZB 1519 C schwarzbeck active loop antenna for magnetic field reception

Introduction:

The FMZB 1513 is a 50cm diameter active, shielded, hand-held loop antenna manufactured by Schwarzbeck (Germany) and distributed by EUTTEST. The antenna, FMZB 1513, can be used with an EMI test receiver for selective measurement of magnetic fields (varying electric fields) in the longwave, mediumwave, and shortwave frequency ranges from 9 kHz to 30 MHz. It is also equipped with a red and green indicator for remaining battery power according to CISPR (e.g. 16-1-4), MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberFMZB 1513
manufacturerSchwarzbeck
agentEUTTEST
Frequency range:9 kHz - 30 MHz
Ring Diameter:500mm
Connectors:N-female 50 Ω
Electric field antenna coefficients:20 dB/m
Magnetic field antenna coefficients:-31.5 dB/Ωm
After-sales service website:EUTTEST.COM
Built-in attenuator:0-33dB in 3dB steps
Maximum field strength:30-130 dBµV/m ,QP / 9 kHz

8-130 dBµV/m ,AV / 200Hz

Built-in battery:12 V NiMH 1.9 Ah

Charger: ACS 110

AM9144

Size:520 x 560 x 60 mm
Weight:1.6kg
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

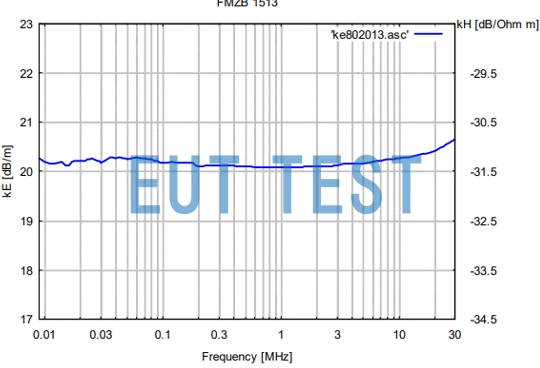

Frequency Response Curve of FMZB 1513

Frequency Response Graph
