Introduction:

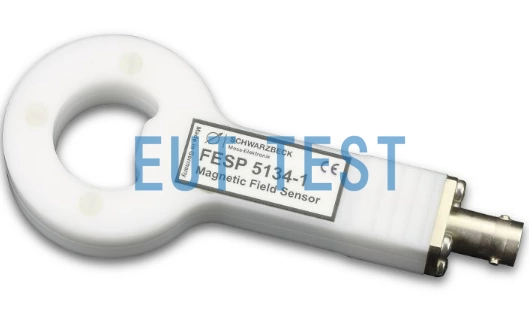

The FESP 5134-1 Handheld Magnetic Field Sensor Magnetic Field Antenna is manufactured by Schwarzbeck, Germany, and is authorized for sale by EUTTEST in Shenzhen, China. Typical use of the antenna is for immunity standards such as IEC 61000-4-39 and for human exposure limits, a list of the available test standards can be found in the Technical Data Sheet below. The antenna needs to be used with a 50 Ω EMI receiver, such as a spectrum analyzer or measurement receiver. Due to the shielded turn, the loop sensor achieves high symmetry and good suppression of electric fields.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Handheld Magnetic Antenna Model | FESP 5134-1 |
manufacturer | Schwarzbeck, Germany |
agent | Shenzhen EUTTEST |
Available test standards | IEC 61000-4-39 ICNIRP IEEE C.95-2005 26. BImSchV |
Number of turns | 1 |
Coil Diameter | 40mm |
Available frequency range | 10kHz-400MHz |
Nominal frequency range | 100kHz-300MHz |
inductors | 125nH |
quality | 70g |
size | 46*18*95mm |
connector | BNC |
Graph of related technical parameters:

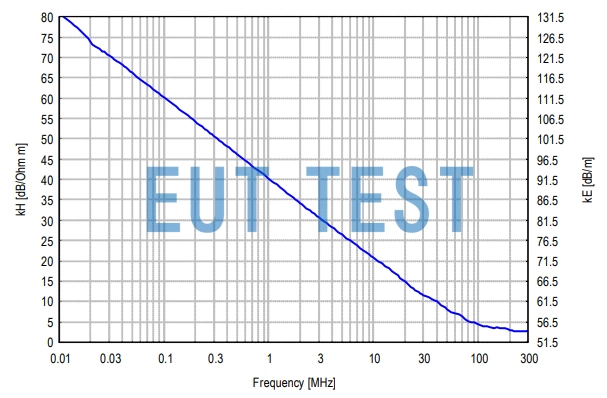

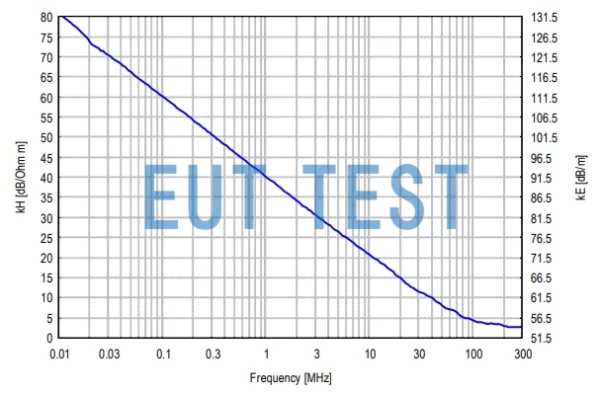

Coefficients converted to electromagnetic fields

internal impedance
