FCC-TEM-JM7D is a transverse electromagnetic wave TEM chamber produced by FCC Fischer Custom Communications, Inc. in the U.S. The FCC authorizes EUTTEST Shenzhen to provide all product sales and quotation services.
The FCC-TEM-JM7D and FCC-TEM-JM7B are both tested at 3GHz, but they have different maximum EUT sizes. See the technical data below or contact us for more information.
Available test standards:
The FCC-TEM-JM7D extends the operating frequency range beyond existing equipment and now allows emission and immunity testing of integrated circuits up to 3 GHz. The IC is mounted on a test fixture that is bolted into place. Once mounted, measurements can be made in accordance with IEC 61967-2 and -8, SAE 1752-3, and IEC 62132-8 up to 4 GHz. It is configured to accommodate a standard 100 mm x 100 mm test board as specified in IEC 61967-2.
IEC 61967-2
IEC 61967-8
SAE 1752-3
IEC 62132-8
More IC integrated circuit test equipment
The FCC-TEM-JM7D can be used for immunity testing and requires approximately 1 mW of input power for a 10 V/m field and approximately 8 W for a 1000 V/m field.
The FCC-TEM-JM7D extends the operating frequency range beyond that of existing devices to now permit conducting emissions and immunity testing of Integrated Circuits to 3 GHz. The FCC-TEM-JM7D extends the operating frequency range beyond that of existing devices to now permit conducting emissions and immunity testing of Integrated Circuits to 3 GHz. The IC is mounted on a test fixture that bolts in place. IEC 62132-8 can be performed to 4 GHz. It is configured to accommodate the standard 100mm x 100mm test plate specified in IEC 61967-2.
The FCC-TEM-JM7D can be used for immunity testing and requires less than 1 milli-watt input power to achieve a 10 volt per meter electric field and approximately 8 watts to achieve 1000 volt per meter electric field. approximately 8 watts to achieve 1000 volt per meter electric field.
Technical parameters：
| TEM Model | FCC-TEM-JM7D |
| Authorized Agents | Shenzhen EUTTEST |
| Available frequency | DC-3GHz |
| Maximum chip size under test | 50*50*8mm |
| Maximum Chip Adapter Size | 10cm*10cm |
| Maximum Input Power | 250W |
| VSWR | 1.2 : 1 |
| External dimensions | 274 x 127 x 61mm |
| RF Connectors | SMA |
Note: FCC-TEM-JM7D meets the requirements of 10cm*10cm adapter plate required by IEC 61967 standard. Please use this product for testing. fcc-tem-jm7c, fcc-tem-jm7b do not give specific indicators.

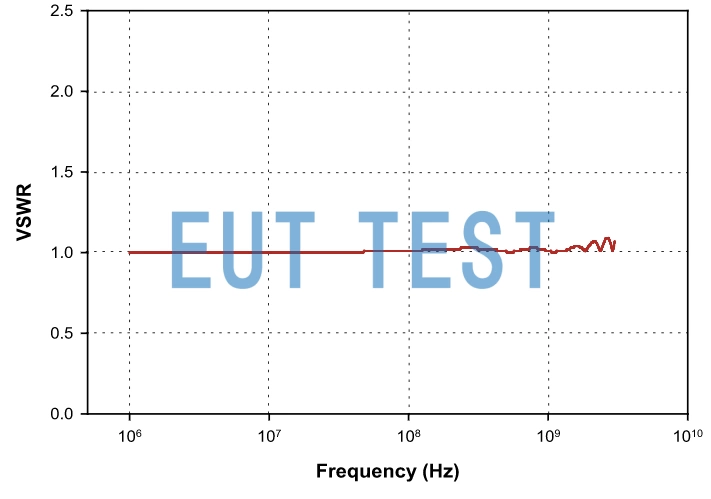

VSWR Chart for FCC-TEM-JM7D
