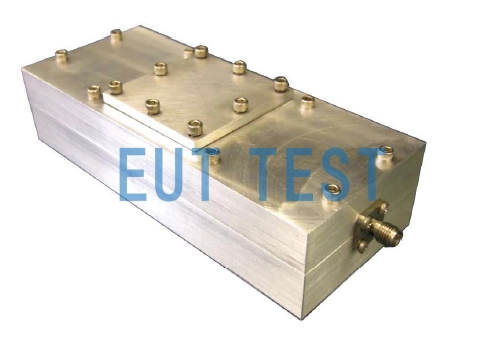

FCC-TEM-JM7B Transverse Electromagnetic Wave TEM cell Cell 10kHz-3GHz

Model: FCC-TEM-JM7B
Brand: FCC

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

FCC-TEM-JM7B is a transverse electromagnetic wave TEM chamber produced by FCC Fischer Custom Communications, Inc. in the U.S.A. The FCC authorizes EUTTEST Shenzhen to provide all product sales and quotation services.

The TEM-JM7B and FCC-TEM-JM7D are both tested at 3GHz, but they have different maximum EUT sizes. See the technical specifications below or contact us for more information.

Meets test criteria:

This TEM extends the operating frequency range beyond existing equipment and now allows emission and immunity testing of integrated circuits up to 3 GHz.The IC is mounted on a test fixture that is bolted into place. Once installed, measurements can be made up to 3 GHz according to the following criteria.

  • IEC 61967-2
  • IEC 61967-8
  • SAE 1752-3
  • IEC 62132-8

More IC integrated circuit test equipment

This TEM can be used for immunity testing and requires approximately 0.2 mW of input power for a 10 V/m field and approximately 2.2 W for a 1000 V/m field.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
TEM ModelFCC-TEM-JM7B
Authorized AgentsShenzhen EUTTEST
Available frequencyDC-3GHz
Maximum chip size under test25*25*4mm
Maximum input power250W
VSWR1.2 : 1
External dimensions137*56mm
RF connectorSMA
<<<<提醒:左右滑动表格>>>>

Remarks:FCC-TEM-JM7DMeets the requirements of 10cm*10cm adapter plate as required by IEC 61967 standard. Please select this product for testing. no specifications are given for JM7C and JM7B.

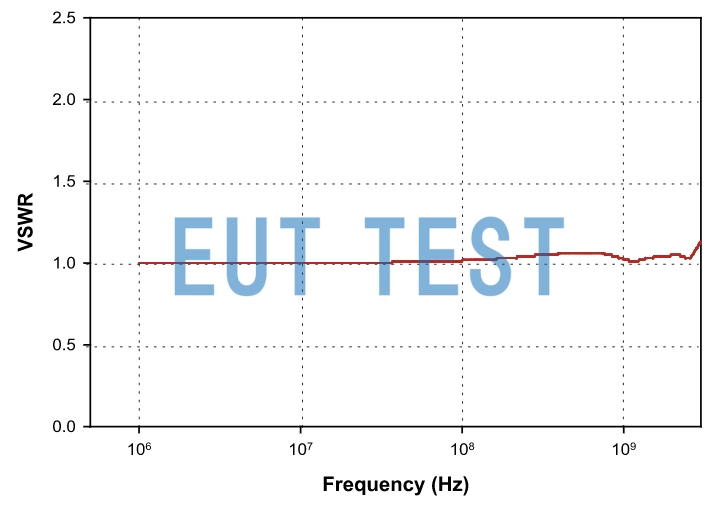

VSWR Chart for FCC-TEM-JM7B

VSWR chart
