Introduction：

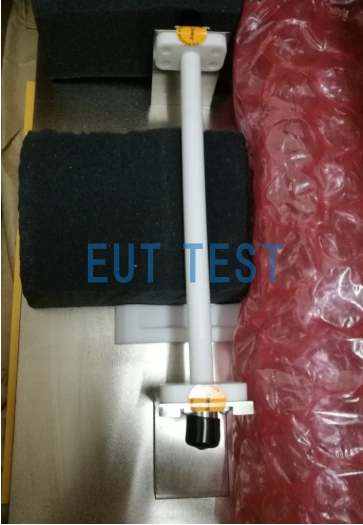

FCC-BCICF-6-150 is a calibration fixture for F-120-9A current injection probe produced by FCC Fischer Custom Communications, Inc. and authorized to be sold by Shenzhen EUTTEST, which is in accordance with IEC61000-4-6 and GBT17626.6 standards, and can be used to complete the conducted immunity test of civil products with the immunity test generator. The F-120-9A current injection probe calibration fixture complies with IEC61000-4-6 and GBT17626.6 standards, and can be used with immunity test generator to complete the conducted immunity test of civil products.
FCC-BCICF-6-150 and F-120-9A IEC61000-4-6 testing can be accomplished with the following brands of equipment:
EMTEST-CWS Sequence Generator
TESEQ-NSG4030 Sequence Signal Generator
Other signal generators with output power and monitoring loops

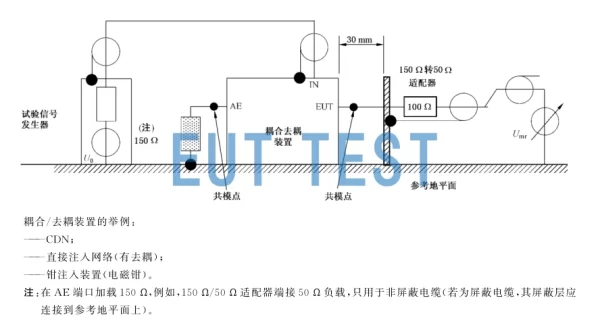

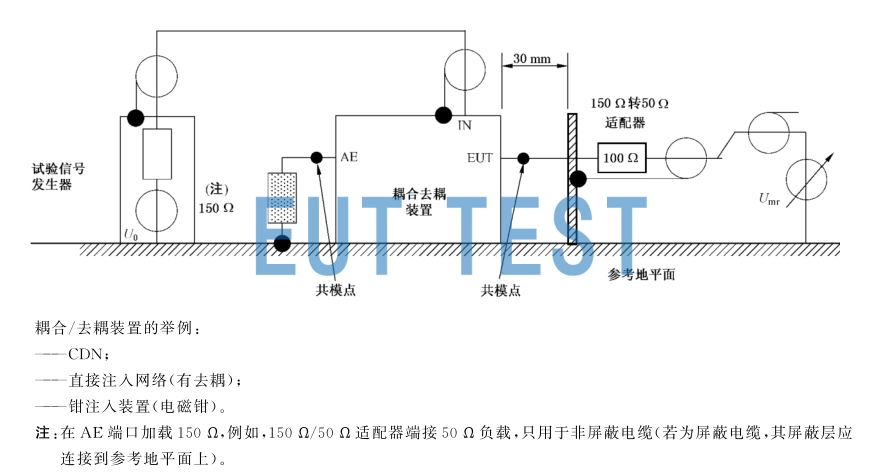

FCC-BCICF-6-150 Test Application to Standard IEC61000-4-6
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | fcc-bcicf-6-150 |
| manufacturer | FCC |
| Meet the standard | IEC 61000-4-6 Ed 4.0, section 6.2.3.1 - 6.2.3.2 |
| Available frequency | 150kHz-230MHz |
| insertion loss | <1.6dB |
| size | (L x W x H) 432 mm x 229 mm x 80 mm |
| weight | 2.2kg |
| Test kits | EUTTEST represents and sells the following products: FCC-BCICF-6-150 , calibration fixture; FCC-801-50-150-BCI , 150Ω/50Ω calibration adapter; FCC-120-9A , current injection clamp; |
Insertion loss for FCC-BCICF-6-150:

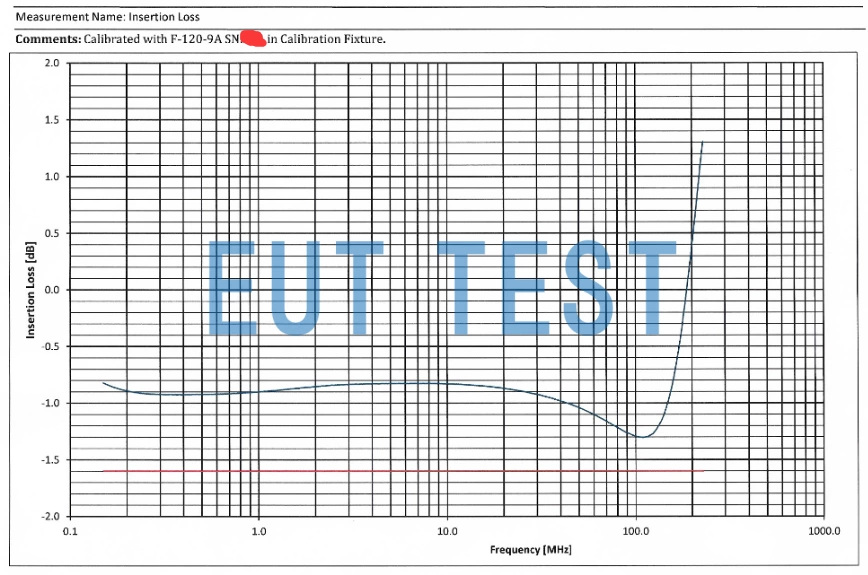

The true insertion loss calibration test data for the FCC-BCICF-6-150 calibration fixture for the F-120-9A probe is shown in the figure below:
Insertion Loss for FCC-BCICF-6-150
