Introduction：
FCC-BCICF-150 is a calibration fixture for current injection probes manufactured by FCC (Fischer Custom Communications, Inc.) and authorized by EUTTEST Shenzhen. Test frequency: 800 MHz - 2.1 GHz, suitable for metrological calibration test of current injection probe F-150.
Most high current injection test program specifications require that an injection probe calibration fixture be part of the test equipment. This test fixture, FCC-BCICF-150, allows the user to quickly and easily calibrate the injection probe prior to performing conformance testing. Contact us for current probe calibration methods after purchasing this calibration fixture from EUTTEST.
The FCC-BCICF-150 calibration fixture offers two important advantages:
1. Due to variable circuit impedance or resonance in the cable, calibration fixtures are used to build positive power into the injection probe to produce a specified current in the system under test.
2. The fixture can be used to measure the insertion loss of the injection probe.
Technical data of FCC-BCICF-150:
<<<<提醒：左右滑动表格>>>>| Calibration Fixture Model | FCC-BCICF-150 |
| Applicable current probe type | High Current Injection Probes |
| agent | Shenzhen EUTTEST |
| frequency of use | 800 MHz - 2.1 GHz |
| size | (L x W x H) 216 mm x 178 mm x 145 mm |
| weight | 2.1kg |

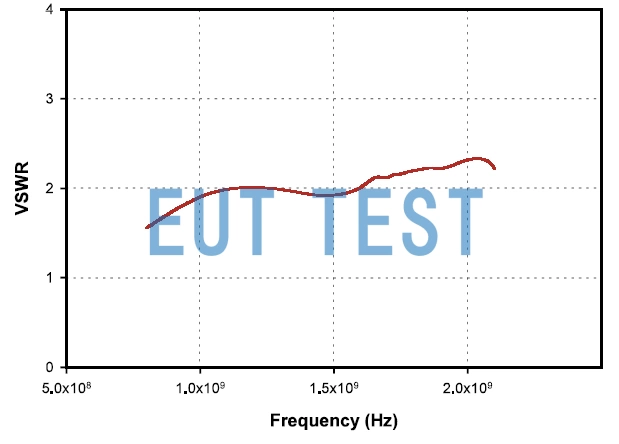

VSWR for FCC-BCICF-150
