Introduction:

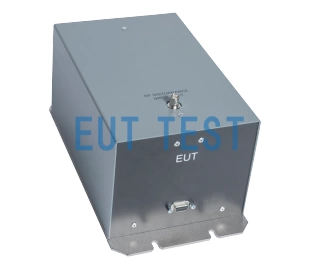

FCC-801-AF8 is a CDN device for D-sub9 port testing to IEC61000-4-6 standard manufactured by FCC USA.Note that this product only activates pins 1-8 and does not fully utilize the 9 ports of the sub connector. This coupled decoupling network supports up to 8W of power, this product is represented by euttest for sales and quotation services.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Product model | FCC-801-AF8 |
manufacturer | United States FCC |
agent | Shenzhen EUTTEST |
Test Application | Conducted immunity test for Dsub9 port |
Cable under test | eight articles Sub9 Connector |
Test Frequency | 150kHz-230MHz |
Common mode impedance | 150kHz-26MHz Frequency: 150Ω ±20Ω At 26MHz-80MHz: 150Ω +60Ω / -45Ω At 80MHz-230MHz frequency: 150Ω ±60Ω |
Meets standard requirements | IEC 61000-4-6, Form 3 requirements IEC 61000-4-6, Appendix B, Form B.1 requirements |
Maximum EUT operating current | 2A |
Maximum EUT operating voltage | 250V AC/DC |
RF Port Impedance | 50Ω |
Dimensions (L*W*H) | 23 cm * 15 cm * 13 cm |
weight | 1.85 kg |
Recommendations for similar products:
If you only need to measure the number of other cables, pick up a different model of the unit below that all have D-sub connectors for testing:
- fcc-801-af9 nine-wire-d-sub9-cdn
- fcc-801-af15 fifteen-wire-d-sub15-cdn
- fcc-801-af25 twenty-five-line-d-sub25-cdn
