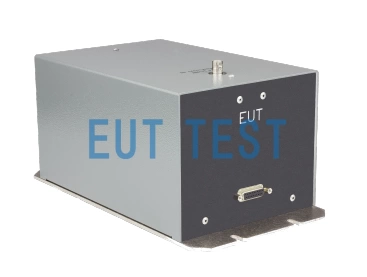

fcc-801-af15 fifteen-wire-d-sub15-cdn

Model: FCC-801-AF15
Brand: FCC

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

FCC-801-AF15 is a CDN device for D-sub15 port testing IEC61000-4-6 standard produced by FCC, this coupling decoupling network supports up to 9W power, this product is sold and quoted service by euttest agent.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Product modelFCC-801-AF15
manufacturerUnited States FCC
agentShenzhen EUTTEST
Test ApplicationConducted immunity testing of Dsub15 ports
Cable under testArticle 15

D-Sub15 Connector

Test Frequency150kHz-230MHz
Common mode impedance150kHz-26MHz Frequency: 150Ω ±20Ω

At 26MHz-80MHz: 150Ω +60Ω / -45Ω

At 80MHz-230MHz frequency: 150Ω ±60Ω

Meets standard requirementsIEC 61000-4-6, Form 3 requirements

IEC 61000-4-6, Appendix B, Form B.1 requirements

Maximum EUT operating current2A
Maximum EUT operating voltage250V AC/DC
RF Port Impedance50Ω BNC
Dimensions (L*W*H)23 cm * 15 cm * 13 cm
weight1.9 kg
<<<<提醒:左右滑动表格>>>>

Recommendations for similar products:

If you only need to measure the number of other cables, pick up a different model of the unit below that all have D-sub connectors for testing:
