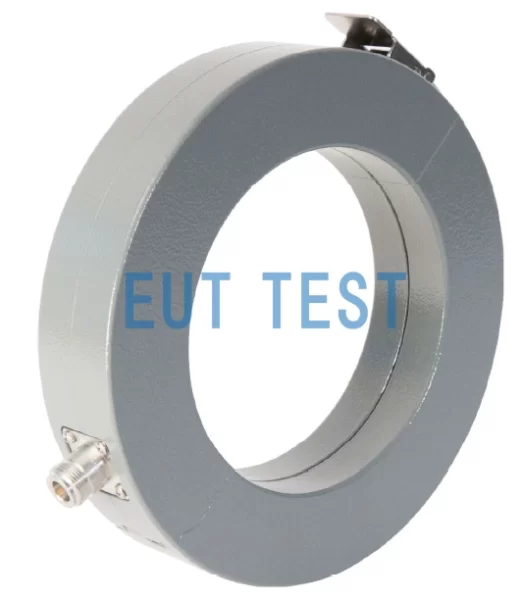

F-80-1 Current Probe Introduction:
The F-80-1 is a current monitoring probe manufactured by FCC in the USA and distributed by EUTTEST under license. The F-80-1 can be used for testing EN50121 in laboratories and inspections and has a large internal diameter of 127 mm, which makes it suitable for one-time testing of large cable bundles for rail and electric locomotives, automobiles, etc. The F-80-1 has a typical transmission impedance of 0 dB° (± dB*) in the frequency range of 100 kHz-100 MHz. The F-80-1 has a typical transmission impedance of 0 dB° (±2 dB*) in the frequency range 100 kHz-100 MHz. Maximum RF current range is 10 A continuous wave CW and 100 A peak pulse with a duty cycle of 0.1. Maximum product power line operating current is 350 A at DC-400 Hz.
F-80-1 is similar to F-180907-1005-1, but with a different frequency classification. Contact EUTTEST for more information on how to use them.
Technical data of F-80-1:
| Frequency is divided into | 1kHz-100MHz |
| Inner ring diameter | 127mm |
| Outer ring diameter | 220mm |
| ZtΩ | 1 |
| dBΩ | 0 |
| connector | N |
| DC-400Hz current | 350A |
| RF continuous wave | 10A |
| Peak pulse current | 100A |

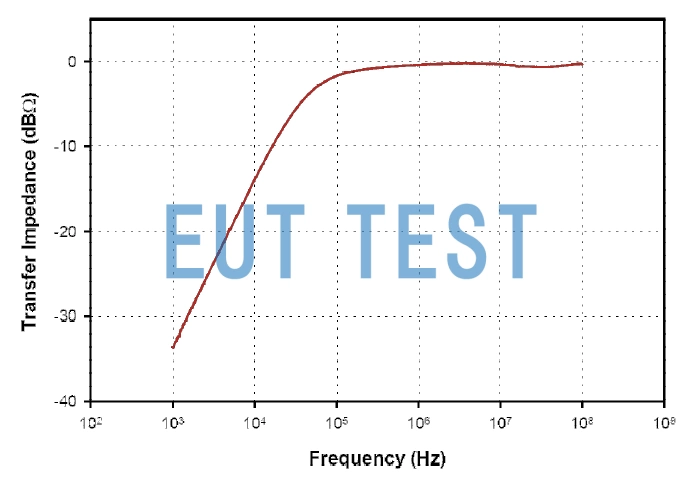

Transmission impedance graph of F-80-1:
Transmission Impedance Curve of F-80-1
