Introduction：

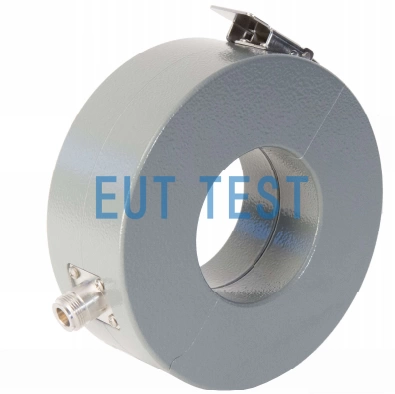

The F-72-7 is a 200MHz current probe manufactured by FCC and authorized for sale by EUTTEST in Shenzhen, U.S.A. The probe is available in the frequency range of 10 Hz to 200 MHz and has a built-in power absorbing terminator. With a transmission impedance of 0.006Ω, the probe can pass 200A of current over the DC-400Hz frequency range, and can withstand 5000A of pulsed current without changing the transmission impedance of the probe over the maximum current range.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Current Probe Models | F-72-7 |
| producers | United States FCC |
| agent | Shenzhen Euttest |
| Available frequency range | 100 Hz - 200 MHz |
| Internal Ring Diameter | 67 mm |
| External ring diameter | 142 mm |
| high degree | 53 mm |
| Typical ZtΩ | 0.006Ω |
| Typical dBΩ | -44Ω |
| connector | N, 50 ohms |
| Rated power current value | 200 A (DC - 400 Hz) |
| RF (CW continuous wave) | 60A |
| peak pulse current (physics) | 5000A 1: Calibrate the probe with a 50Ω+j0Ω load impedance. 2: Depends on pulse width and pulse repetition rate. |
Graph of related technical parameters：

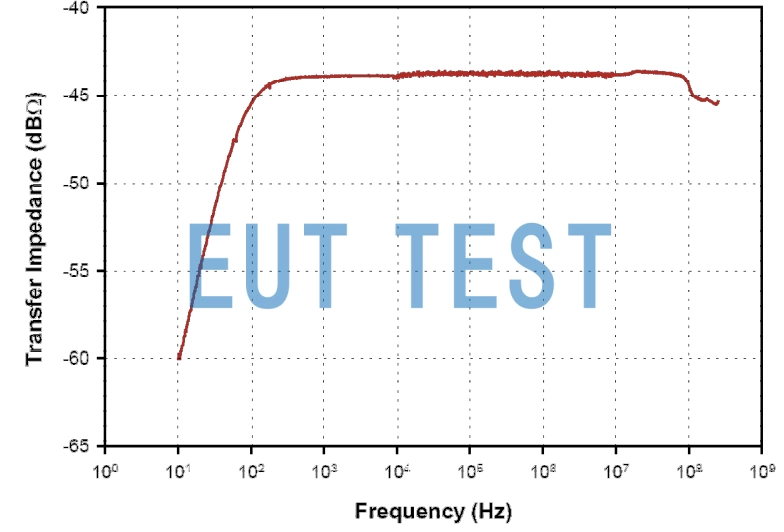

Transmission impedance graph
