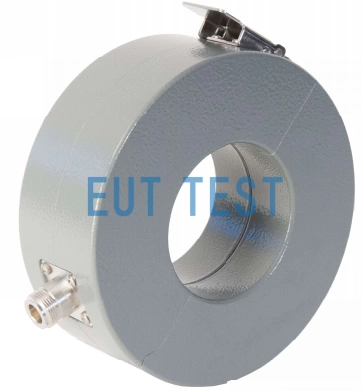

F-72-1 Introduction:

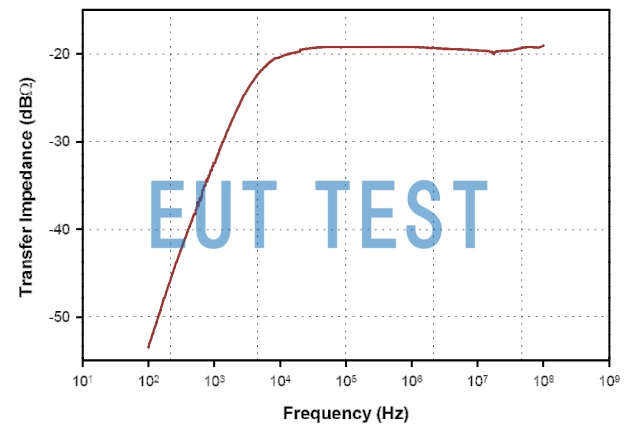

The F-72-1 is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The available frequency range of the F-72-1 is 100 Hz to 100 MHz. This is a primary transfer impedance of 0.1‰ over the range of 6 kHz to 100 MHz.EUT power supply current of 350 Amp DC-400 Hz, 500 Amp pulses will not change the transfer impedance.
The main technical parameters of the F-72-1:
Available frequency range: 100 Hz - 100 MHz
Internal ring diameter: 67 mm
External ring diameter: 142mm
Height: 53mm;
Typical value ZtΩ(1) 0.1;
Typical dBΩ: -20 ;
Connector: N, 50 ohms;
Rated power current value: 350 A (DC - 400 Hz);
RF (CW continuous wave): 100A;
Peak pulse current (2): 500A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
