F-39-2 Introduction:
The F-39-2 is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The F-39-2 is the same current probe as the F-39-1 with a split-core mechanical design that allows it to be easily clamped on or off the wire. It has a very small form factor to clamp conductors in tight spaces.The F-39-1 offers wide bandwidth laboratory and bench environment measurement capability.
Main technical parameters of F-39-2:
Available frequency range: 1kHz - 200 MHz
Internal ring diameter: 18 mm
External ring diameter: 85 mm
Height. 6mm;
Typical ZtΩ(1). 1;
Typical dBΩ. 0 ;
Connectors. SMA, 50 ohms;
额定功率电流值: 20 A (DC - 400 Hz);
RF (CW continuous wave):1A;
Peak pulse current (2):: 10A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
F-39-2 Calibration Fixture: FCC-MPCF-39

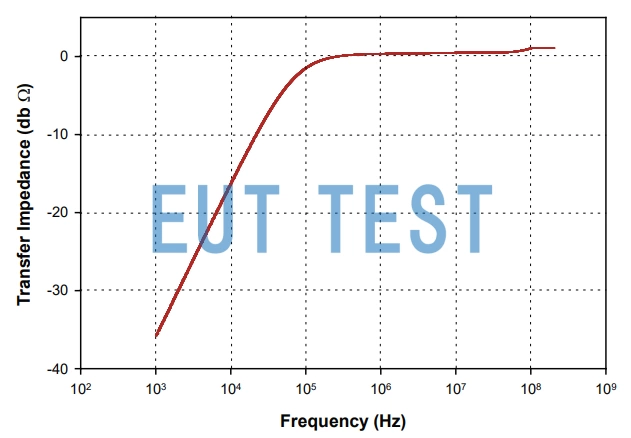

Transmission Impedance Curve for F-39-2
