F-39-1 Introduction:
The F-39-1 is an EMI monitoring current probe manufactured by the U.S. FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The F-39-1 current probe utilizes a split-core mechanical design that allows it to be easily clamped on or off the wire. Its very small form factor allows it to clamp conductors in small spaces. The F-39-1 provides measurement capability in wide bandwidth laboratory and bench environments.
Main technical parameters of F-39-1:
Available frequency range: 10 kHz - 200 MHz
Internal ring diameter: 18 mm
External ring diameter: 85 mm
Height. 6mm;
Typical ZtΩ(1).2.8;
Typical dBΩ. 9;
Connectors. SMA, 50 ohms;
额定功率电流值: 20 A (DC - 400 Hz);
RF (CW continuous wave):1A;
Peak pulse current (2):: 10A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
F-39-1 Calibration Fixture: FCC-MPCF-39

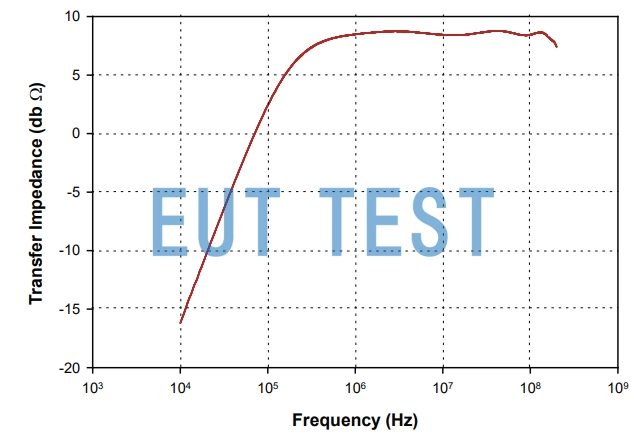

Transmission Impedance Graph for F-39-1
