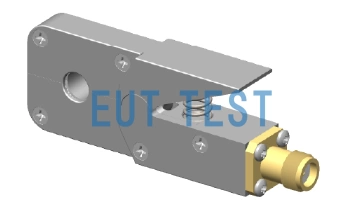

F-38-4 Introduction:
The F-38-4 is an EMI monitoring current probe manufactured by FCC - Fischer Custom Communications, Inc. and authorized for sale by EUTTEST Shenzhen. The F-38-4 current probe has a split-core mechanical design that makes it easy to clamp and disconnect conductors. It has a very small form factor for clamping conductors in small spaces.FCC The F-38-4 provides a wide range of bandwidth measurement capabilities for laboratory and bench environments.
The main technical parameters of the F-38-4:
Available frequency range: 1 MHz-1 GHz
Internal ring diameter: 5 mm
External ring diameter: 54 mm
Height: 10mm;
Typical value ZtΩ(1): 5.6;
Typical dBΩ: 15 ;
Connector: SMA, 50 ohms;
Rated power current value: 20 A (DC - 400 Hz);
RF (CW continuous wave): 1A;
Peak pulse current (2): 10A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
F-38-4 Matching Calibration Test Fixture: FCC-MPCF-F-38

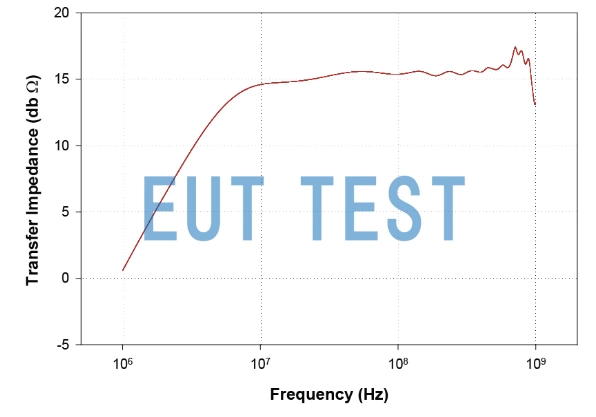

Transmission impedance graph for FCC F-38-4.
