Presentation:
The F-37-2 is a 1 GHz current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen for laboratory and field testing. The available frequency range of the probe is 10 kHz-1 GHz, in the frequency range of 500 kHz-1 GHz, its typical transmission impedance is 1 (+2 dB), the RF current range is 10 Amp continuous wave and 100 Amp peak pulse, the duty cycle is 0.1 from DC to 400Hz, the maximum current of the primary power line is 60A. with a maximum current of 60 A.
Technical parameters：
| Model number | F-37-2 |
| Product name | 1GHz Current Probe |
| manufacturer | U.S. FCC |
| agent | Shenzhen EUTTEST |
| Available frequency range | 10kHz-1GHz |
| Internal Ring Diameter | 12 mm |
| External ring diameter | 33 mm |
| high degree | 81 mm |
| Typical ZtΩ | 1 |
| Typical dBΩ | 0 |
| connector | SMA |
| industrial frequency current | 60 A (DC - 400 Hz) |
| Continuous wave current | 10A |
| peak pulse current (physics) | 100A 1: Calibrate the probe with a 50Ω+j0Ω load impedance. 2: Depends on pulse width and pulse repetition rate. |
| Optional calibration fixture | FCC-MPC F-37-2 |
| packing list | One probe; One copy of the instruction manual; One copy of factory calibration data; One hard plastic case; |

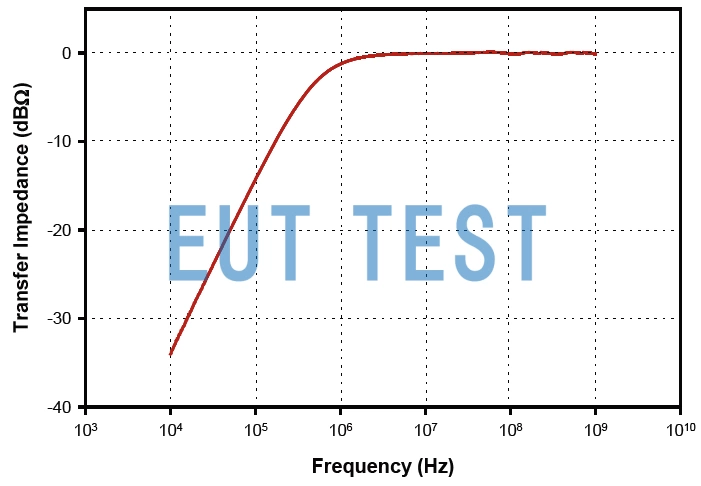

Transmission impedance graph.
(Used to test corrections, contact EUTTEST for more information on usage)
Transmission impedance graph
FCC: Product specifications are subject to change without notice.
