Introduction：
F-210602-1005-1 is a current clamp and current monitoring probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized by the FCC to be distributed by EUTTEST Shenzhen. This probe is used to replace the discontinued current probe. F-170804-1005-1 RF currents up to 10Hz-400MHz can be read by the probe and tested for common mode interference current signals on cables. The current probe utilizes a clamp-on design that allows for testing without damaging the cable under test. An inner diameter of up to 70mm allows engineers to test larger cable diameters, which is especially useful for the thicker diameters of new energy vehicle buses.
All current probes manufactured by FCC USA can be trained by EUTTEST for laboratory use.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Current Probe Model | F-210602-1005-1 |
| manufacturer | FCC |
| Domestic Authorized Agents | Shenzhen EUTTEST |
| frequency | 10kHz-400MHz |
| Inner ring diameter | 70mm |
| Outer ring diameter | 125mm |
| high degree | 38mm |
| Transmission impedance ZtΩ | 5.62 |
| Transmission Impedance dBΩ | 15 |
| connector | N |
| Current through at DC-400Hz | 400A |
| RF Continuous Wave Current | 40A |
| Optional Current Probe Calibration Fixture | fcc-mpcf-2-70/125/38 |

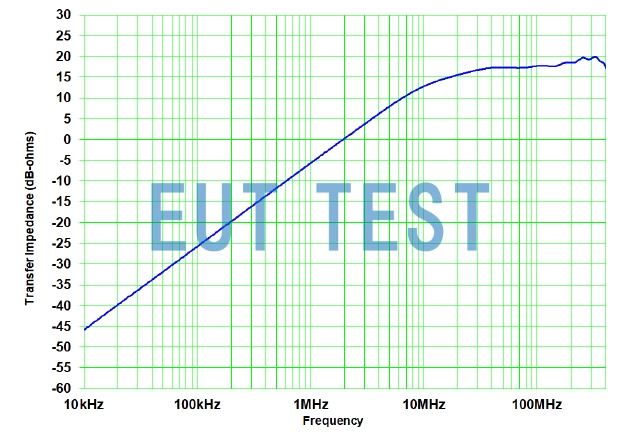

Transmission impedance graph:
Transmission impedance ZTΩ
