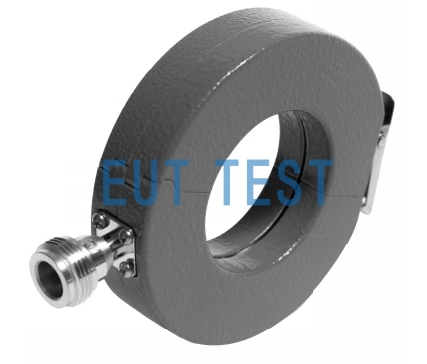

F-2000-40mm-1 Introduction:
The F-2000-40mm-1 is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The F-2000-40mm-1 is used for laboratory and field testing, this probe has a small outer diameter of approximately 80 mm and an inner diameter of 40 mm. it can operate up to 350 amps DC-400 Hz, 3 amps continuous wave and 100 amps peak pulse current in amperes.
The main technical parameters of the F-2000-40mm-1:
Available frequency range. 10 MHz - 2.1GHz
Internal Ring Diameter.40mm
Outer ring diameter.80mm
Height. 19mm;
Typical ZtΩ(1)18；
Typical dBΩ. 25;
Connectors. N, 50 ohms;
额定功率电流值: 350 A (DC - 400 Hz);
RF (CW continuous wave):3A;
Peak pulse current (2): 100A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
F-2000-40MM-1 Calibration Fixture:FCC-MPCF-F-2000-40mm

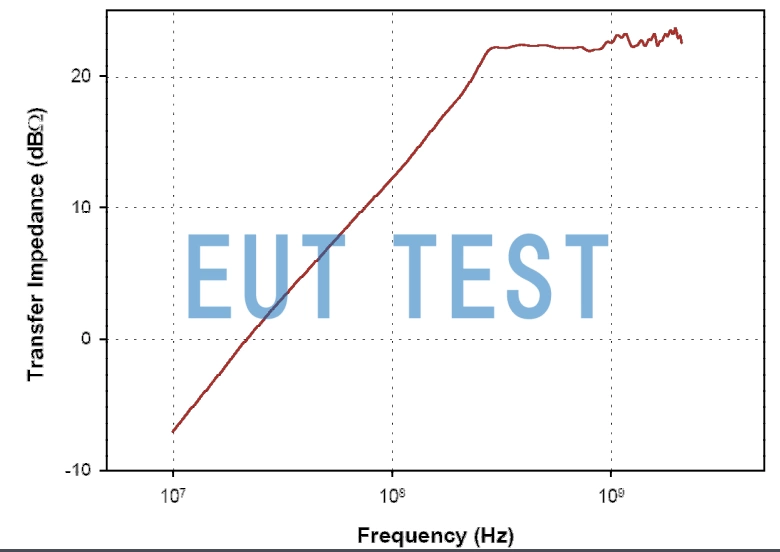

Transmission Impedance Curve of F-2000-40MM-1
