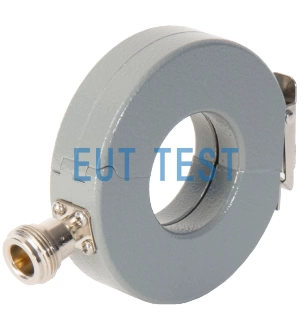

Introduction to the F-2000-32mm-1:
The F-2000-32mm-1 is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The F-2000-32mm-1's convenient and compact design can be used for laboratory cable emission currents and interference testing of field-installed equipment. The probe has a small outside diameter of approximately 71mm and an inside diameter of 32mm.It can operate up to 350 amps DC-400Hz, 3 amps continuous wave and 100 amps peak pulse current.
The main technical parameters of the F-2000-32mm-1:
Available frequency range. 10 MHz - 2.1GHz
Internal Ring Diameter.32mm
Outer ring diameter.71mm
Height. 19mm;
Typical ZtΩ(1)18；
Typical dBΩ. 25;
Connectors. N, 50 ohms; optional SMA
额定功率电流值: 350 A (DC - 400 Hz);
RF (CW continuous wave):3A;
Peak pulse current (2): 100A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.

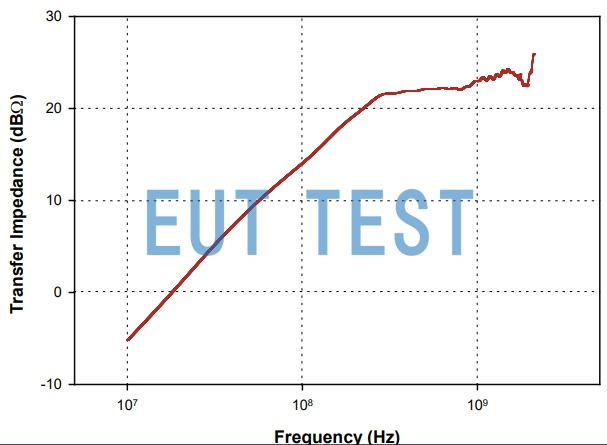

Transmission impedance graph of F-2000-32mm-1
