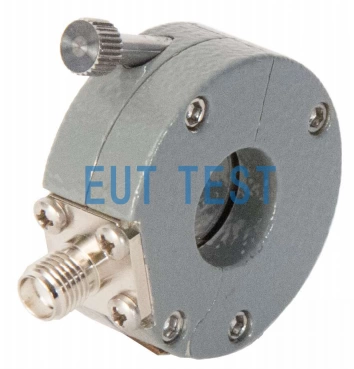

F-2000-12mm Introduction:
The F-2000-12mm is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The F-2000-12mm current probe is ideal for laboratory and field testing over a frequency range from 10 MHz to 3 GHz. The open-ended design makes it easier for engineers to perform non-destructive current testing on test cables.
The main technical parameters of F-2000-12mm:
Available frequency range.10 kHz - 3 GHz
Internal Ring Diameter.13 mm
Outer ring diameter.37 mm
Height:17 mm
Typical value ZtΩ (1): 16
Connectors:Type-SMA
Max. peak current: 100 A
Max. RMS current: 100 A
Decline rate (%/ms.).
IT Max. (amp-sec).
Available rise time:
Low frequency 3 dB point 100 MHz
HF 3 dB point 3 GHz
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
F-2000-12mm Calibration Fixture: FCC-MPCF-2K Rev B

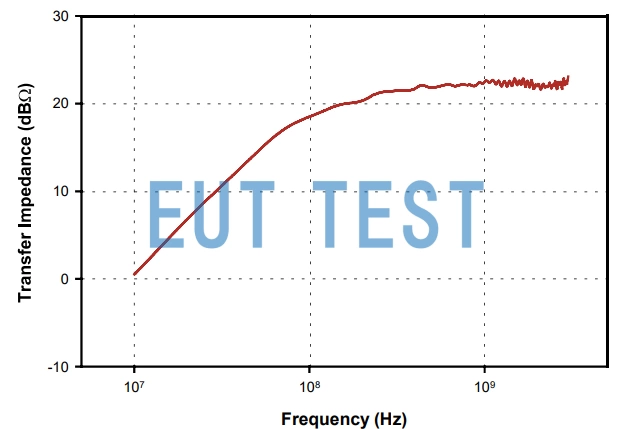

Transmission Impedance Curve of F-2000-12mm
