Introduction：

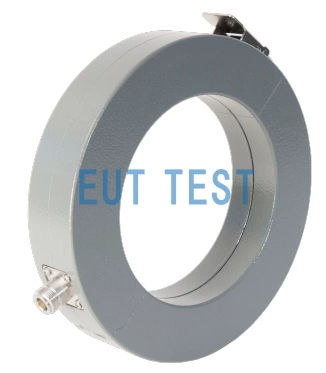

The F-180907-1005-3 is produced and manufactured by the FCC in the USA for laboratory and field testing and is distributed by EUTTEST Shenzhen. This current probe has a large inner diameter of 127mm to accommodate large cable bundles, and a DC-400 Hz current of 1000A will not change its transmission impedance.
F-180907-1005-3 Main technical parameters:
Available frequency range. 10 kHz-1 MHz
Internal Ring Diameter. 127mm
Outer ring diameter. 197mm
Height. 41mm;
Typical value ZtΩ(1): 0.1;
Typical dBΩ. -20;
Connectors. N, 50 ohms;
额定功率电流值: 1000A (DC- 400 Hz);
RF (CW continuous wave):10A;
Peak pulse current (2): 100A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
Calibration fixture for F-180907-1005-3:
fcc-mpcf-1-127/197/41

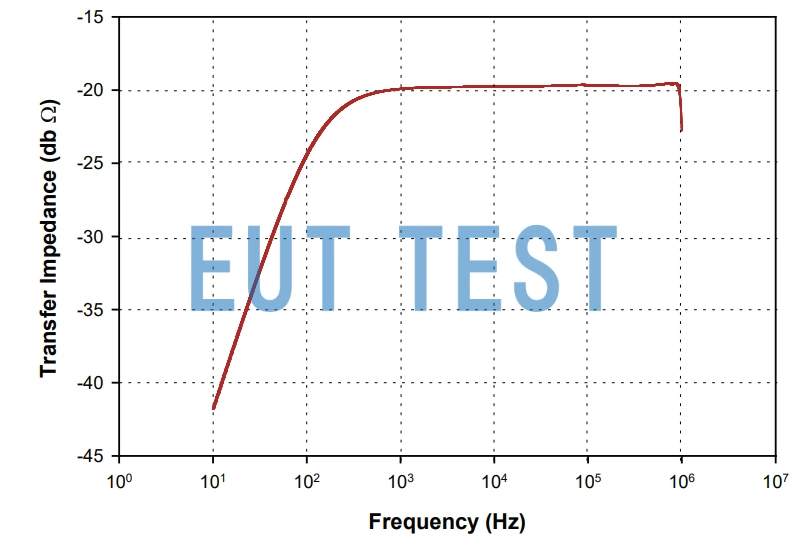

Transmission Impedance Graph for F-180907-1005-3
