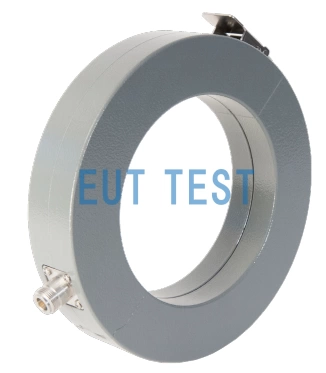

F-18090907-1005-2 FCC Current Probe 10kHz-108MHz

Model: F-180907-1005-2
Brand: FCC

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

F-180907-1005-2 is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. This probe is especially suitable for CISPR25 automotive electronic interconnect cables in the frequency range of 150kHz-108MHz conducted interference emission laboratory and field testing, this probe can accommodate large cable bundles with an inner diameter of 127mm, DC-400 Hz through the 500A current will not change its transmission impedance.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Current Probe ModelF-180907-1005-2
manufacturerFCC USA, Inc.
Domestic Authorized AgentsShenzhen EUTTEST
Product nameEMI Monitoring Current Probe
frequency10kHz-108MHz
Inner ring diameter127 mm
Outer ring diameter197 mm
high degree41 mm
Transmission impedance ZtΩ1 Ω
Transmission Impedance dBΩ0 dBΩ
connector50Ω N-type connector
DC-400Hz Current1000A
RF Continuous Wave Current10A
pulse current (physics)100A
Calibration Fixturefcc-mpcf-1-127/197/41
<<<<提醒:左右滑动表格>>>>

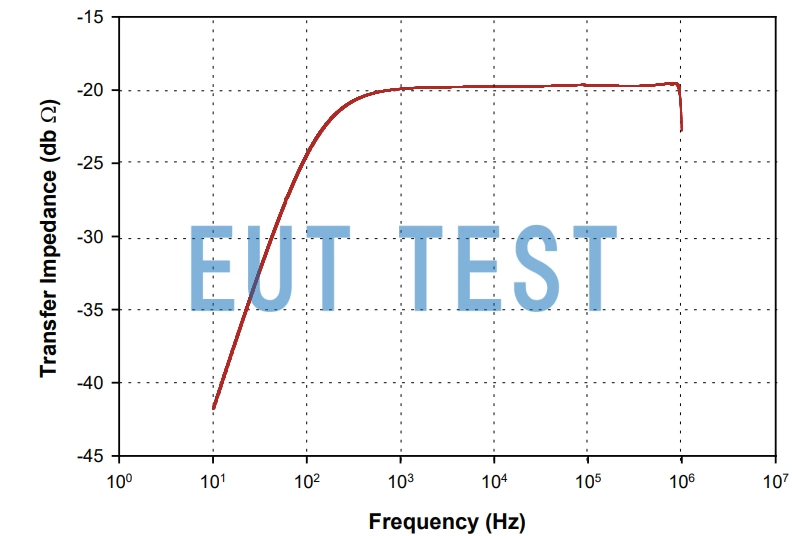

Transmission impedance graph:

Transmission Impedance Graph for F-180907-1005-2

Transmission impedance graph

We also offer the following FCC 180907 serial probes, please select the appropriate test instrument based on the following key parameter differences:

  • F-180907-1005-1 ; 10kHz-108MHz ; ZtΩ=5.6Ω ; Maximum operating current: 500A;
  • F-180907-1005-3 ; 10kHz-1MHz ; ZtΩ=0.1Ω ; Maximum operating current: 1000A;
