F-170804-1005-1 Introduction:

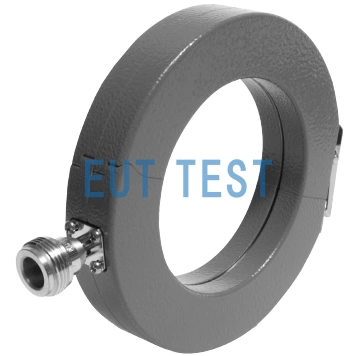

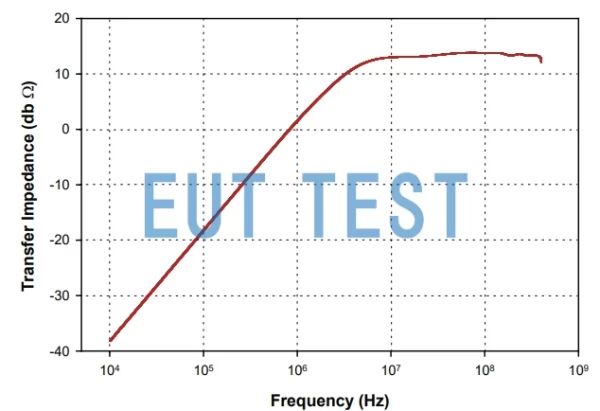

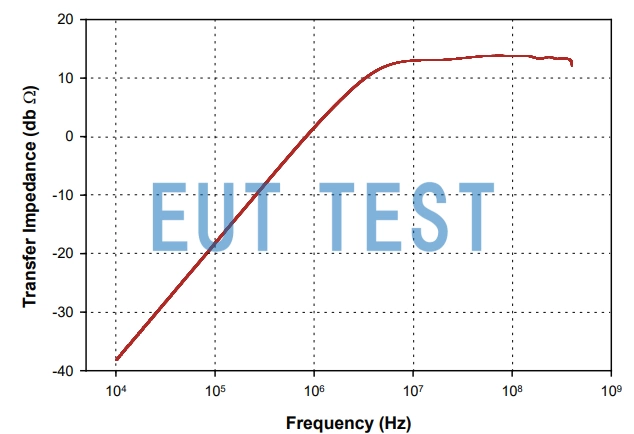

F-170804-1005-1 is an EMI monitoring current probe and current clamp manufactured by FCC (Fischer Custom Communications, Inc.) and authorized for sale by EUTTEST Shenzhen. The F-170804-1005-1 is used for laboratory and field testing and is available in the frequency range of 10 kHz-400 MHz. a typical calibration curve is shown at the end of the article. This current probe F-170804-1005-1 has a large inner diameter of 65 mm, ideal for clamping large cable bundles for new energy vehicles or military equipment cables.
The main technical parameters of F-170804-1005-1:
Available frequency range. 10 kHz - 400 MHz
Internal Ring Diameter. 65mm
Outer ring diameter. 104mm
Height. 19mm;
Typical value ZtΩ(1): 5;
Typical dBΩ. 14;
Connectors. N, 50 ohms;
额定功率电流值: 150A (DC - 400 Hz);
RF (CW continuous wave):2A;
Peak pulse current (2): 100A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
Calibration fixture for F-170804-1005-1:
fcc-mpcf-2-67/142/53
