F-170501-1008-1 FCC Current Injection Probe 10 MHz - 400 MHz

Model: F-170501-1008-1
Brand: FCC

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

F-170501-1008-1 is a BCI high current injection probe manufactured by FCC (Fischer Custom Communications, Inc.) and authorized to be sold by EUTTEST Shenzhen. F-170501-1008-1 high power injection probe is generally used for ISO11452-4 BCI test and GB151B MIL STD 461 C D E F G CS114 test, DO160 section20 test. The F-170501-1008-1 can inject very high RF currents into signal or power circuits up to 40 mm in diameter. The available frequency range is 10 MHz to 400 MHz, with a typical insertion loss of less than 7 dB from 10 MHz to 400 MHz. Input power is rated at 2.5 kW for 30 minutes.

F-170501-1008-1 Main technical parameters:

Available frequencies: 10 MHz - 400 MHz

Inner ring size: 40 mm

Outer ring size: 127 mm

Height: 134mm

Input rated power: 2.5KW (30 minutes)

Product Difference: F-170501-1008-1 has a higher input power than F-170701-1008-1.

Optional accessory for F-170501-1008-1:

F-170421-1008-1 Calibration Fixture, bandwidth: 10 kHz - 400 MHz

F-52B Current Probe, Bandwidth: 10 kHz - 400 MHz

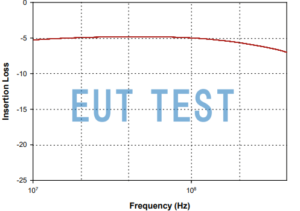

Insertion Loss Curve for F-170501-1008-1

F-170501-1008-1 Insertion Loss Curve Diagrams

F-170501-1008-1 Insertion Loss Curve Diagrams

FCC Fischer Custom Communications:

Product specifications are subject to change without notice.

Product specifications are subject to change without notice.
