Introduction：

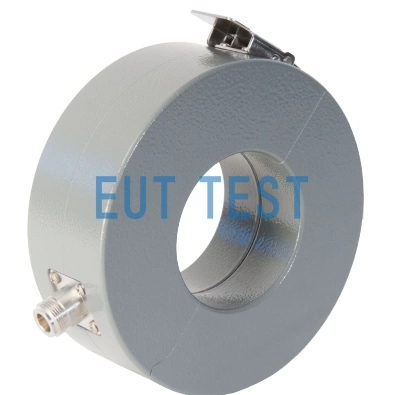

The F-170308-1005-1 is an EMI monitoring current probe manufactured by FCC (Fischer Custom Communications, Inc.) in the United States and authorized to be distributed by EUTTEST Shenzhen. The F-170308-1005-1 is used to measure conducted emissions from 10 Hz to 50 MHz, and it can handle 50 amps of primary power line current from DC-400 Hz without saturating or affecting the transfer impedance.
F-170308-1005-1 Main technical parameters:
Available frequency range: 10 Hz - 50 MHz
Internal ring diameter: 67mm
External ring diameter: 142mm
Height. 53mm;
Typical ZtΩ(1): 0.7；
Typical dBΩ. -3;
Connectors. N, 50 ohms;
额定功率电流值: 50 A (DC - 400 Hz);
RF (CW continuous wave):10A;
Peak pulse current (2): 100A;
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
F-170308-1005-1 Calibration Fixture:
Calibration Fixture: FCC-MPCF-2/67/142/53

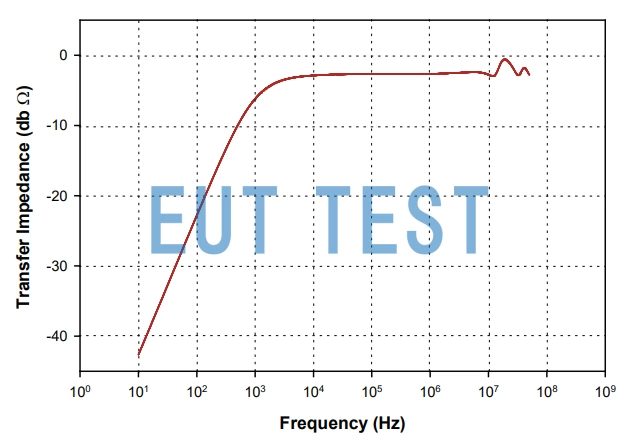

Calibration Fixture Function: Tests the transmission impedance curve of the current probe as shown below.
