Introduction：

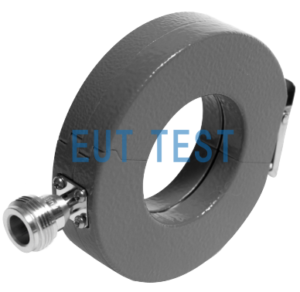

F-170302-1005-1 is an EMI monitoring current probe manufactured by FCC - Fischer Custom Communications, Inc. and authorized to be sold by EUTTEST Shenzhen. F-170302-1005-1 is mainly used for testing impulse current, such as the size of the impulse interference current injected into the working cable or CS immunity of the product, and can test the frequency range of 10Hz-50MHz, which is very suitable for product troubleshooting and analysis.
F-170302-1005-1 Main technical parameters:
Available frequency range. 10 Hz - 50 MHz
Internal Ring Diameter.40mm
Outer ring diameter.80mm
Height. 19mm;
Typical ZtΩ(1) 0.001；
Typical dBΩ. -60;
Connectors. N, 50 ohms; optional SMA
额定功率电流值: 20 A (DC - 400 Hz);
RF (CW continuous wave):2A;
Peak pulse current (2)::
8 x 20 ms: 2000A
6 x 100 ms: 1000A
10 x 700 ms: 200A
1: Calibrate the probe with a 50Ω+j0Ω load impedance.
2: Depends on pulse width and pulse repetition rate.
F-170302-1005-1 Calibration Fixture:
F-170302-1005-1 The Calibration Fixture FCC-MPCF-3-32-40/71/19 was used to test the transmission impedance and metrological calibration of this current probe as required by the FCC.

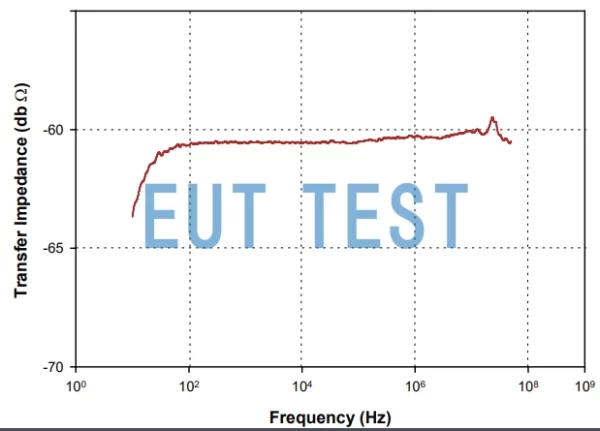

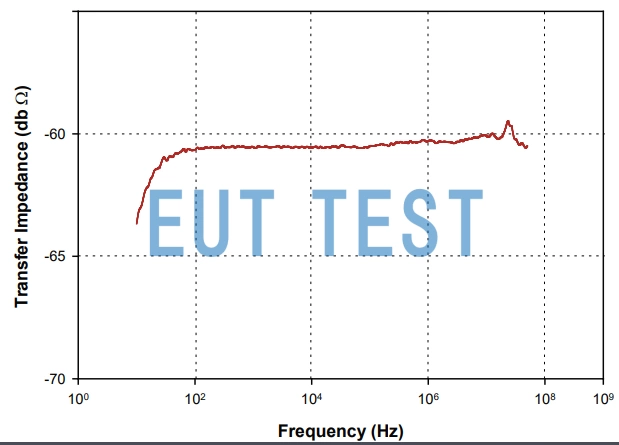

Transmission Impedance Graph for F-170302-1005-1
