Introduction：

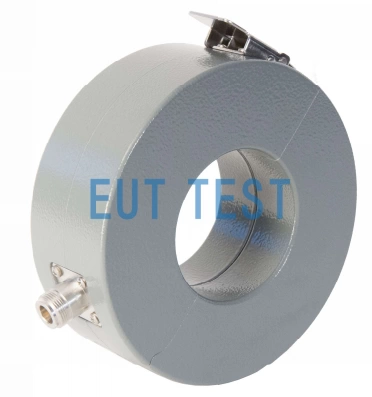

F-120-9A is a BCI high current injection probe manufactured by FCC Fischer Custom Communications, Inc. and authorized to be sold by EUTTEST Shenzhen. The F-120-9A high power injection probe is commonly used for IEC 61000-4-6, GB/T 17626.6, ISO11452-4 BCI testing and GJB151B, MIL_STD_461 C/D/E/F/G CS114 testing, DO160 section20 testing. The F-120-9A is designed to extend the use of the IEC 61000-4-6 / GBT17626.6 standard for conducted immunity. Tests are performed over a bandwidth of 10 kHz-230 MHz. The available frequency range is 10 kHz-230 MHz with an insertion loss of less than 8 dB @ 150 kHz-200 MHz and an input power rating of 100 watts for 30 minutes.
Technical parameters：
| Model number | F-120-9A |
| manufacturer | FCC |
| agent | EUTEST Shenzhen |
| Test Available Frequency | 10kHz-230MHz |
| inside diameter | 40mm |
| external diameter (including thickness of the wall) | 127mm |
| high degree | 134mm |
| Rated Input Power | 100W |
Option for F-120-9A:
For use in standards GB/T 17626.6 and IEC 61000-4-6:
FCC-BCICF-6-150 , calibration fixture.
FCC-801-150-50-BCI , 50/150Ω calibration adapter.
ATT-6dB 6dB attenuator.

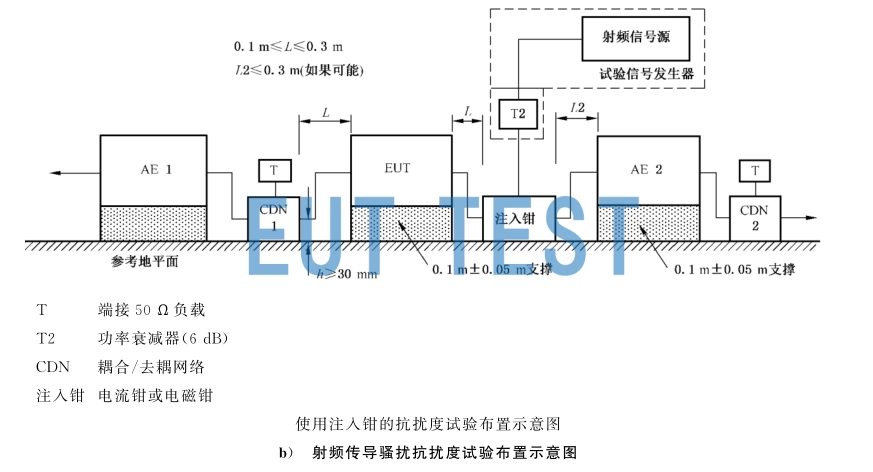

F-120-9A Test Configuration Diagram for Standard IEC61000-4-6
Detailed test system equipment composition and program contact us for more information.
Option for BCI testing:
FCC-BCICF-1 , Bandwidth: 10 kHz - 400 MHz, Calibration Fixture
F-52B Current Probe, Current Monitoring Probe, Bandwidth: 10 kHz - 400 MHz

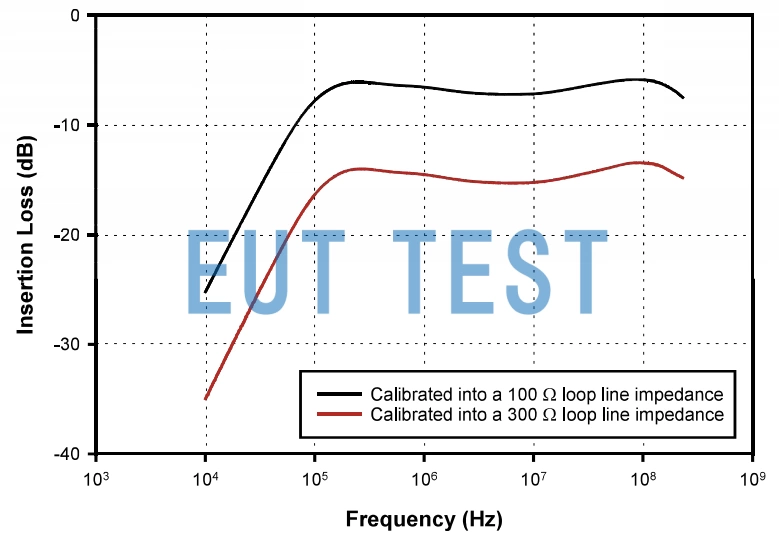

F-120-9A Insertion Loss Curves
FCC Fischer Custom Communications:
Product specifications are subject to change without notice.
