F-120-6A is a BCI high current injection probe produced by FCC Fischer Custom Communications, Inc. and authorized to be sold by EUTTEST Shenzhen. F-120-6A high power injection probe is generally used for ISO11452-4 BCI test and GB151B MIL STD 461 C D E F G CS114 test, DO160 section20 test.
The F-120-6A is a broadband, high efficiency injection probe. RF currents can be coupled to test signals or power circuits between 10 kHz-400 MHz. The insertion loss of the probe is less than or equal to 9 dB over the 1.8 MHz-400 MHz range.
Note: If you need to test the BCI high current injection test from 10kHz to 1GHz, please purchase the following two models of current probes:
F-140, FCC Current Injection Probe, 10kHz - 1GHz
F-200925-1005-1 , FCC Current Monitoring Probe, 10kHz - 1GHz
F-180101-1008-1 , US FCC Current Injection Probe, 10kHz-400MHz, 125W
The main technical parameters of F-120-6A:
Available frequencies: 10 kHz - 400 MHz
Inner ring size: 40 mm
Outer ring size: 127 mm
Height: 70 mm
Rated Input Power.
100 watts for 30 minutes
150 watts for 15 minutes
200 watts for 5 minutes
Optional accessory for the F-120-6A:
FCC-BCICF-1 , Calibration Fixture, Bandwidth: 10 kHz - 400 MHz
F-52B, Current Probe, Bandwidth: 10 kHz - 400 MHz

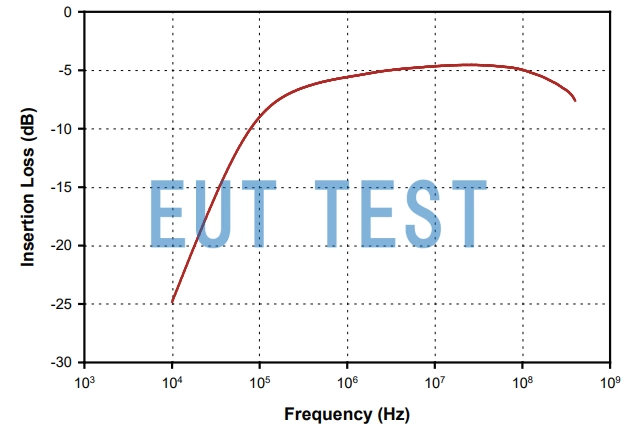

Insertion Loss Curve for F-120-6A
Insertion Loss Curve for F-120-6A
