Introduction：
F-080409-1008-1 is a BCI high current injection probe manufactured by FCC Fischer Custom Communications, Inc. and authorized to be distributed by EUTTEST Shenzhen.
The F-080409-1008-1 high power injection probe is typically used for ISO11452-4 BCI testing and GB151B MIL STD 461 C D E F G for CS114 testing, DO160 section20 testing. The F-080409-1008-1 is designed for conducted immunity testing over a bandwidth of 2.0 GHz-3.0 GHz. It combines high efficiency, high power ratings, and compact dimensions to support testing of individual cable harnesses on test benches as well as during cable bundles inside vehicles. Follows standard alternative method test methods used in ISO 11451-4, ISO 11452-4, MIL-STD.461/462 Rev D/E, FAA DO-160 Rev D/E. F-080409-1008-1 Requires 20 watts of power to generate 300 mA to a 100 Ω loop impedance calibration fixture.
F-080409-1008-1 features:
Broadband testing. <9 dB attenuation at 2-3 GHz input to 100 Ω loop impedance
Can use up to 250 watts
Accommodates EUT cables up to 32 mm in diameter .
F-080409-1008-1 Main technical parameters:
Available frequencies: 2.0 GHz - 3.0 GHz
Inner ring size: 32 mm
Outer ring size: 71 mm
Height: 19mm
Input power rating: 250 watts
F-080409-1008-1 Optional accessories:
F-080409-1008-2 Calibration Fixture Calibration Fixture, Bandwidth: 2.0 GHz - 3.0 GHz;
F-2000-32 mm-1 Current Probe, bandwidth: 10 MHz - 2.1 GHz.

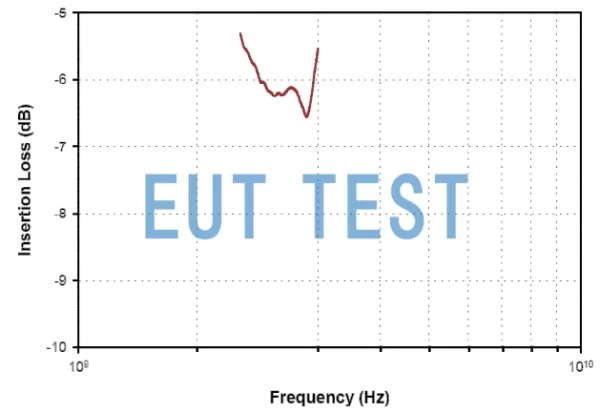

Insertion Loss Curve for F-080409-1008-1
Insertion Loss Curve for F-080409-1008-1
