ETS-Lindgren Introduction:
ETS-Lindgren, from the USA, is an industry-recognized supplier of EMC test antennas, wave darkrooms, and other EMC equipment.ETS-Lindgren's team of 750 professionals designs and manufactures electromagnetic and acoustic components and systems that make many aspects of modern life possible.For more than 75 years, ETS Lindgren has created innovations that cut across industries and market sectors, creating a track record of success:
A system for controlling unintended electromagnetic energy emissions.
A tool for analyzing and measuring the performance of wireless devices before they go to market.
A microwave laboratory used to test military aircraft before they are put into service.
A facility that enables physicians to obtain MRI images and perform procedures in the same room.
Safety monitoring solutions for utility workers exposed to electromagnetic fields while climbing telecom and broadcast towers.
ETS Lindgren has been part of the ESCO Technologies (NYSE ESE) portfolio since 1993. This global partnership ensures that ETS Lindgren has strong financial backing and resources to invest in operational efficiencies as well as long-term industry research and development.
ETS-Lindgren Authorized Agent:
Our company acts as an agent to sell all the products of American ETS-LINDGREN company, this product page only shows the list of all the catalogs produced by American ETS-LINDGREN, the detailed parameters of each instrument click on the model number or contact us to get more information, we also provide ETS's airwave darkroom building station and shielding room construction services, shielding effectiveness in line with GBT12190 and GJB5972 standards, and up to 40GHz IEC61000-4-3 electric field probes can meet all the EMC standard test requirements, you can also purchase probes with fiber-optic power supply to reduce test interference. The shielding performance meets GBT12190 and GJB5972 standards, and the IEC61000-4-3 electric field probes up to 40 GHz can meet all EMC standard test requirements, and fiber-optic-powered probes can be purchased to minimize test interference.
In addition, EUTTEST provides ETS-LINDGREN after-sales installation and training services.
List of test equipment models manufactured by ETS-LINDGREN:
ETS has a large number of products, please use Ctrl + F to search for the model number and provide EUTTEST with a quotation and delivery date.
Antenna; EMC Test Antenna, VLF/ELF Magnetic Field Meter, Near Field Probe Set/Current Probe

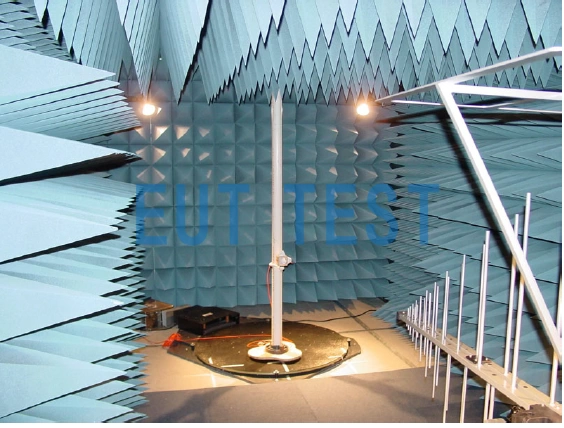

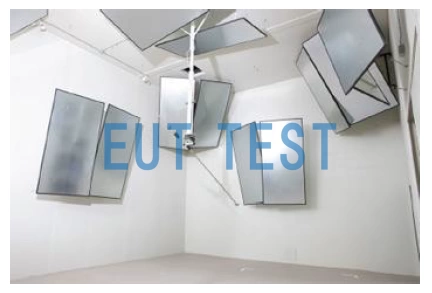

Chamber Absorber: dark room construction, shielded room construction, wave absorbing materials, shielding materials
Darkroom data filters/power filters, antenna towers and turntables
Electric field probes according to IEC 61000-4-3: 100 kHz (10 MHz) - 6 GHz (40 GHz)
Product model | Technical Parameters |
helical polarized antenna | |
3102 | Frequency range: 1 - 10 GHz Note: Right-hand opening, left-hand rounded pole |
3102L | Frequency range: 1 - 10 GHz Note: Left side opening, right hand circular polarization |
Biconical antenna | |
3104C | Frequency range: 20 MHz - 200 MHz |
3104CP | 3104C with portable elements |
3109 | Frequency range: 20 MHz - 300 MHz (high power) |
3109P | 3109 with portable elements |
3109PX | 3109 Portable elements with extended lengths |
3109.4375 | Frequency range: 20 MHz - 300 MHz (high power) 7/16 connector |
3109P 7/16 | 3109 with Portable Components 7/16 Connector |
3109PX 7/16 | 3109 Portable Components with Long Length 7/16 Connector |
3110C | Frequency range: 30 MHz - 300 MHz |
3110CP | 3110B with portable elements |
CC0020 | Carrying case 3110C/3110B |
Logarithmic periodic antenna | |
3144 | Frequency range: 80 MHz - 2 GHz - Maximum input power: 2 kW continuous |
3147 | Frequency range: 200 MHz - 5 GHz with Radome |
3148B | Frequency range: 200 MHz - 2 GHz |
3186 | Stacked LPDA 1-18 GHz with Radome |
Product model | Log Periodic, Dual Polarized Antenna |
3145BDP | Frequency range: 100 MHz - 1.1 GHz |
Product model | BiConiLog™ Log Periodic Hybrid Antenna |
3149 | BiConiLog™ 80 MHz - 6 GHz |
3142E | BiConiLog™ Lead Junction Components 30 MHz - 6 GHz Band |
3142E-PB | BiConiLog™ with Bowed Element 30 MHz - 6 GHz w/Pre-amp |
1618969 | Pre-Amp Modification Kit for 3142E (includes calibration) |
3143B | BiConiLog™ Leaded Junction Components 26 MHz - 1 GHz |
3140B | BiConiLog™ 26 MHz - 3 GHz NOTE: Recommended for mounting on a 7-TR (tripod). |
Double Ridge Waveguide Horn Antenna | |
3106B | Frequency range: 200 MHz = 2.5 GHz with N-type connector |
3106B7/16 | Frequency range: 200 MHz = 2.5 GHz with 7/16″ DIN connector |
3106BSC | Frequency range: 200 MHz = 2.5 GHz with SC connector |
3115 | Frequency range: 750 MHz = 18 GHz |
3115-RE | 3115 with Radom |
3115-PB | 3115 with preamplifier |
119331 | 3115 Preamplifier conversion kit (includes calibration) |
3117 | Frequency range: 1 GHz = 18 GHz |
3117-RE | 3117 with Radom |
3117-PB | 3117 with preamplifier |
118621 | Preamplifier retrofit kit for 3117 (includes calibration) |
3119B | Frequency range: 400 MHz - 6 GHz |
3119B 7/16 | Frequency range: 400 MHz - 6 GHz |
3116C | Frequency range: 10 GHz - 40 GHz |
3116C-RE | 3116 With Radom |
3116C-PA | 3116C with Preamplifier 18 GHz - 40 GHz |
118620 | Preamplifier Retrofit Kit for 3116C (includes calibration) |
Standard gain horn antenna | |
3160-01 | Frequency range: 0.96 GHz - 1.46 GHz |
3160-02 | Frequency range: 1.12 GHz - 1.70 GHz |
3160-03 | Frequency range: 1.70 GHz - 2.60 GHz |
3160-04 | Frequency range: 2.60 GHz - 3.95 GHz |
3160-05 | Frequency range: 3.95 GHz - 5.85 GHz |
3160-06 | Frequency range: 5.85 GHz - 8.20 GHz |
3160-07 | Frequency range: 8.20 GHz = 12.40 GHz |
3160-08 | Frequency range: 12.40 GHz - 18.00 GHz |
3160-09 | Frequency range: 18.00 GHz - 26.50 GHz |
3160-09PA | Standard gain speaker amplification |
3160-10 | Frequency range: 26.50 GHz - 40.00 GHz |
3160-10PA | Standard gain speaker amplification |
Diagonal Dual Polarization Horn Antenna | |
3164-01 | Diagonal Dual Polarization Horn Antenna Frequency Range: 100 MHz - 1 GHz |
3164-05 | Diagonal Dual Polarization Horn Antenna Frequency Range: 2-18 GHz |
3164-05-RE | Diagonal dual-polarized horn antenna with Radom Frequency range: 2-18 GHz |
3164-06 | Diagonal Dual Polarized Horn Antenna Frequency Range: 300 MHz- 6 GHz |
3164-06-RE | Diagonal Dual Polarization Horn Antenna with Radom Frequency Range: 300 MHz - 6 GHz |
3164-08 | Diagonal Dual Polarized Horn Antenna Frequency Range: 700 MHz - 10 GHz |
3164-10 | Diagonal Dual Polarized Horn Antenna Frequency Range: 400 MHz - 10 GHz |
3164-11 | Super Open Boundary Quad Ridge Frequency Range: 1 - 18 GHz |
3164-11-RE | Super Open Boundary Four Ridge Band Radom Frequency Range: 1 - 18 GHz |
octave angle antenna | |
3161-01 | Frequency range: 1 GHz - 2 GHz |
3161-02 | Frequency range: 2 GHz - 4 GHz |
3161-03 | Frequency range: 4 GHz - 8 GHz |
High gain conical horn antenna 3163 | |
3163-03 | High gain conical horn C band 4-8 GHz |
3163-04 | High gain conical horn X-band 8-12 GHz |
3163-05 | High gain conical horn kU Band 12-18 GHz |
3163-06 | High gain conical horn k band 18-26.5 GHz |
Dipole antenna | |
3121D | Kit consists of Barron assembly, four element bars (two adjustable low frequency, two adjustable high) two extension elements, clamp block assembly, support bar and base, 8m tape measure, high frequency ruler, 10m cable assembly, field attenuation logs, manual and carrying case |
3121D-DB1 | DB1 Baron Assembly with Element and Manual Frequency range: 28 MHz = 60 MHz |
3121D-DB2 | DB2 Baron Assembly with Elements and Manuals Frequency range: 60 MHz = 140 MHz |
3121D-DB3 | DB3 Baron Assembly with Elements and Manuals Frequency range: 140 MHz = 400 MHz |
3121D-DB4 | DB4 Baron Assembly with Element and Manual Frequency range: 400 MHz = 1 GHz |
TEM antenna | |
3166 | Antenna, TEM Speaker, 380MHz to 3GHz |
3167 | Antenna, TEM Speaker, 2 to 6 GHz |
Coaxial dipole antennas for wireless applications | |
3126-450 | Precision coaxial dipole 450 MHz |
3126-500 | Precision coaxial dipole 500 MHz |
3126-550 | Precision Coaxial Dipole 550 MHz |
3126-600 | Precision coaxial dipole 600 MHz |
3126-700 | Precision coaxial dipole 700 MHz |
3126-722 | Precision coaxial dipole 722 MHz |
3126-750 | Precision coaxial dipole 750 MHz |
3126-790 | Precision Coaxial Dipole 790 MHz |
3126-800 | Precision coaxial dipole 800 MHz |
3126-836 | Precision Coaxial Dipole 836 MHz |
3126-880 | Precision Coaxial Dipole 880 MHz |
3126-900 | Precision coaxial dipole 900 MHz |
3126-920 | Precision coaxial dipole 920 MHz |
3126-950 | Precision Coaxial Dipole 950 MHz |
3126-1050 | Precision Coaxial Dipole 1050 MHz |
3126-1100 | Precision Coaxial Dipole 1100 MHz |
3126-1225 | Precision Coaxial Dipole 1225 MHz |
3126-1325 | Precision Coaxial Dipole 1325 MHz |
3126-1400 | Precision Coaxial Dipole 1400 MHz |
3126-1475 | Precision Coaxial Dipole 1475 MHz |
3126-1550 | Precision Coaxial Dipole 1550 MHz |
3126-1575 | Precision Coaxial Dipole 1575 MHz |
3126-1700 | Precision Coaxial Dipole 1700 MHz |
3126-1732 | Precision coaxial dipole 1732 MHz |
3126-1790 | Precision Coaxial Dipole 1790 MHz |
3126-1800 | Precision Coaxial Dipole 1800 MHz |
3126-1845 | Precision Coaxial Dipole 1845 MHz |
3126-1850 | Precision Coaxial Dipole 1850 MHz |
3126-1880 | Precision coaxial dipole 1880 MHz |
3126-1920 | Precision Coaxial Dipole 18920MHz |
3126-2000 | Precision coaxial dipole 2000 MHz |
3126-2045 | Precision Coaxial Dipole 2045 MHz |
3126-2075 | Precision Coaxial Dipole 2075 MHz |
3126-2100 | Precision Coaxial Dipole 2100 MHz |
3126-2140 | Precision Coaxial Dipole 2140 MHz |
3126-2145 | Precision Coaxial Dipole 2145 MHz |
3126-2150 | Precision Coaxial Dipole 2150 MHz |
3126-2300 | Precision Coaxial Dipole 2300 MHz |
3126-2400 | Precision Coaxial Dipole 2400 MHz |
3126-2450 | Precision Coaxial Dipole 2450 MHz |
3126-2500 | Precision coaxial dipole 2500 MHz |
3126-2600 | Precision Coaxial Dipole 2600 MHz |
3126-2700 | Precision Coaxial Dipole 2700 MHz |
3126-2900 | Precision Coaxial Dipole 2900 MHz |
3126-3600 | Precision Coaxial Dipole 3600 MHz |
3126-5200 | Precision Coaxial Dipole 5200 MHz |
3126-5500 | Precision Coaxial Dipole 5500 MHz |
3126-5800 | Precision Coaxial Dipole 5800 MHz |
other | Customized dipoles are available upon request. |
Wireless Applications Precision Center-Fed Loop | |
3127-722 | Precision Center-Fed Loop 722 MHz |
3127-836 | Precision Center-Fed Loop 836 MHz |
3127-850 | Precision Center-Fed Loop 850 MHz |
3127-870 | Precision Center-Fed Loop 870 MHz |
3127-880 | Precision Center-Fed Loop 880 MHz |
3127-897 | Precision Center-Fed Loop 897 MHz |
3127-920 | Precision Center-Fed Loop 920 MHz |
3127-1575 | Precision Center-Fed Loop 1575 MHz |
3127-1732 | Precision Center-Fed Loop 1732 MHz |
3127-1747 | Precision Center-Fed Loop 1747 MHz |
3127-1768 | Precision Center-Fed Loop 1768 MHz |
3127-1790 | Precision Center-Fed Loop 1790 MHz |
3127-1800 | Precision Center-Fed Loop 1800 MHz |
3127-1862 | Precision Center-Fed Loop 1862 MHz |
3127-1880 | Precision Center-Fed Loop 1880 MHz |
3127-1950 | Precision Center-Fed Loop 1950 MHz |
3127-2100 | Precision Center-Fed Loop 2100 MHz |
3127-2132 | Precision Center-Fed Loop 2132 MHz |
3127-2140 | Precision Center-Fed Loop 2140 MHz |
3127-2141 | Precision Center-Fed Loop 2141 MHz |
3127-2150 | Precision Center-Fed Loop 2150 MHz |
3127-2450 | Precision Center-Fed Loop 2450 MHz |
3217-2600 | Precision Center-Fed Loop 2600 MHz |
3127-5500 | Precision Cener-Fed Loop 5500 MHz |
Pole (monopole) antenna | |
3301C | Active Pole E Field 110/220 VAC = 60 Hz, 30 Hz - 50 MHz |
3303 | Passive rod E-field 1 kHz - 30 MHz |
3305* | Set consisting of 3301C and 3303 |
Pole (Monopole) Antenna Parts | |
3301CAL-A | Calibration Block MIL-STD 461 F/G (10pF) |
3301CAL-B | Calibration Block CISPR (12pF) |
Ring antenna | |
6502 | Active Loop with Charger with Charger H Field - 30 MHz |
6507 | Active Loop H-Field with Charger with 1 kHz - 30 MHz |
6509 | Passive cyclic H-field. Frequency range: 1 kHz = 30 MHz |
6511 | Passive cyclic H-field. Frequency range: 20 Hz = 5 MHz |
6512 | Passive cyclic H-field. Frequency range: 9 kHz - 30 MHz |
Magnetic field generator | |
7604 | Frequency range: 20 Hz - 500 kHz |
7605 | Frequency range: 30 Hz - 100 kHz (Mil-Std. 461D) |
7606 | Frequency range: 30 Hz - 100 kHz (Mil-Std. 461D) |
Description Antennas developed for SAE - Automotive and Aerospace applications | |
3112 | Double Ridge Waveguide Angle Antenna Frequency range: 100 MHz = 1 GHz with N-type connector |
3112-01 | Double Ridge Waveguide Angle Antenna Frequency range: 100 MHz = 1 GHz with 1-5/8″ EIA connector |
3112-02 | Double Ridge Waveguide Angle Antenna Frequency range: 100 MHz = 1 GHz with 7/16 DIN connector |
3150B | Log Periodic, Dipole Array Antenna Frequency range: 100 MHz = 1 GHz |
3151 | Formerly shortened logarithmic period, dipole array antenna with pedestal Frequency range: 20 MHz = 200 MHz |
3158 | Biconical antenna, high field strength Frequency range: 20 MHz = 150 MHz, 5 kW input power |
3159C | Biconical antenna Frequency range: 30 MHz = 100 MHz, 10 kW input power |
3162-01 | Near Field High Gain Antenna, 600 v/m Automotive Component Testing Frequency range: 1.1 - 1.5 GHz |
3162-02 | Near Field High Gain Antenna, 600 v/m Automotive Component Testing Frequency range: 2.7 - 3.1 GHz |
3162-04 | Field Generation Pyramid Horn 1-3.1GHz |
Car Antenna Options | |
113870 | Positioner, 3158 |
109620 | Base, 3159C and 3145BDP |
109621 | Base, Fixed Height, Manual Tilt, Air Polarization, 3112 |
Field Strength Field Generators Developed for SAE - Automotive and Aerospace Applications | |
5502-6 | E/H On-site generator (motorized ceiling mount) customizable Frequency range: 100 kHz - 30 MHz, 10 kw input power |
5503-2M | E/H on-site generator (self-supporting portable floor mount) Frequency range: 100 kHz - 30 MHz, 1kW input power, 3kW option available Discrete height adjustment for elements with 1.5 m, 2 m, 2.5 m (for VP) 2.5m for vertically polarized operation, 1.5m for vertically polarized operation |
5503-3M | E/H on-site generator (self-supporting portable floor mount) Frequency range: 100 kHz - 30 MHz, 3kW input power |
5503-5M | E/H Field Generator (self-supporting) Frequency range: 100 kHz - 30 MHz, 3 kw input power |
5504 | E Field generator (motorized ceiling mounted) Frequency range: 100 kHz - 30 MHz, 10 kw input power |
ETS-LINDGREN can manufacture EMC labs.![]() ETS-LINDGREN Manufacturing EMC Radio Darkroom | |
FACT™ 3 Chambers | Semi-anechoic chamber (SAC) |
FACT™ 5 Chambers | Semi-anechoic chamber (SAC) |
FACT™ 10 Chambers | Semi-anechoic chamber (SAC) |
FACT™ 25 CISPR Chambers | Semi-anechoic chamber (SAC) |
MIL-STD 461 Chambers | Semi-anechoic chamber (SAC) |
RF Reverberation Chamber Tuner | reverberation room |
SMART™ 80 Reverb Chambers | reverberation room |
SMART™ 200 Reverb Chambers | reverberation room |
SMART™ 800 Reverb Test Cell (Dual) | reverberation room |
SMART™ 800 Reverb Test Cell (Single) | reverberation room |
SpaceSaver™ 26H Chamber | Full Anechoic Chamber (FAC) |
SpaceSaver™ FAR Chamber | Full Anechoic Chamber (FAC) |
SpaceSaver™ PC Chamber | Full Anechoic Chamber (FAC) |
List of field strength probes manufactured by ETS-LINDGREN:![]() Field Strength Probes from ETS-LINDGREN | |
EMSense™ 10 | EMCenter 2 and 7 Slot Field Probe Kits - 10 kHz to 10 GHz |
1714963 | EMCenter 2 7007-201 10M KIT, PROBE+CARD+10M FIBER |
1714964 | EMCenter 2 7007-201 20M KIT, PROBE+CARD+20M FIBER |
1714959 | EMCenter 1 7007-201 10M KIT, PROBE+CARD+1-SLOT+10M |
1714961 | EMCenter 1 7007-201 20M KIT, PROBE+CARD+1-SLOT+20M |
H-491269 | Probe Stand Assembly |
HI-6006 | Electric field probe + battery |
HI-6023 | Electric field probe + battery |
HI-6053 | Electric field probe |
HI-6153 | Electric field probe |
EMsense | |
Field Probe Signal Fiber to USB Fiber Converter from ETS-LINDGREN![]() Fiber optic converters manufactured by ETS-LINDGREN | |
EMSense™ 10 | EMF Probe Plug-in Card |
HI-4413P | Fiber to Serial Converter |
HI-4413USB | Fiber to USB Converter |
HI-4416 | Numeric EMF Readout Unit |
HI-6113 | Laser Data Interface |
List of current probe models manufactured by ETS-LINDGREN:![]() Current probes manufactured by ETS-LINDGREN | |
91550-1 | 31.75 mm (1.25") ID Frequency range: 10 kHz - 100 MHz |
91550-1L | 31.75 mm (1.25") ID Frequency range: 20 Hz - 100 MHz |
93686-8 | 66.67 mm (2.625") ID Frequency range: 10 kHz - 200 MHz |
94111-1 | 31.75 mm (1.25") ID Frequency range: 1 MHz - 1 GHz |
94111-1L | 31.75 mm (1.25") ID Frequency range: 20 Hz - 1 GHz |
94430-1 | 19.05 mm (0.75") ID, with BNC connector Frequency range: 10 kHz - 250 MHz |
ETS-LINDGREN produces signal filters for airwave darkrooms.![]() ETS-LINDGREN's Darkroom Signal Filters for Airwaves | |
Data Filters | |
Dual Line Single Phase Filters (LRX Series) | |
EMP Commercial and Defense Non-Tempest Powerline Filters Specs | |
EMP Commercial and Defense Tempest Powerline Filters | |
GigaFOIL™ v3 Ethernet Filter | |
Multiple Circuit Filters LRE Series | |
Multiple Circuit Panels for LRX Filters | |
N242X Series Low Earth Leakage High Performance RFI_EMI Power Filters | |
N258X High Current RFI_EMP Power Filters | |
N900X Series Power Filters | |
One Line Single Phase Filters (LRX Series) | |
P.A | |
Panel_Cabinet for Filters Sizing Chart | |
Security Systems Filters | |
Signal and Sensor Lines Filters | |
Single & Dual Line Filters | |
Specialty Filters | |
Telephone Line Digital Filters | |
Telephone Line Voice_Analog POTS Filters | |
ETS-LINDGREN Power Amplifiers | |
8000-004~096 | |
Soundproof rooms produced by ETS-LINDGREN![]() Soundproof rooms produced by ETS-LINDGREN | |
Delta Corner Test Booths | |
Double-Wall Audiometric Examination Suites | |
Double-Wall Exam Booths | |
Multi-Configurable Audiometric Test Booths | |
Single-Wall Control_Double Wall Exam Suites | |
Single-Wall Exam Booths | |
Single-Wall Examination Suites | |
ETS-LINDGREN hospital audiology suite![]() ETS-LINDGREN hospital audiology suite | |
Mini Hearing Screening Booths | |
Multi-Station Hearing Screening Booths - Double-Wall | |
Multi-Station Hearing Screening Booths - Single-Wall | |
Single Wall Screening Booths | |
ETS-LINDGREN Anechoic Chamber![]() Anechoic chambers produced by ETS-LINDGREN | |
Acoustic Doors | soundproofed door |
Adjustable Field Enclosure | Adjustable Field Housing |
Anechoic Chamber | anechoic chamber |
Head and Torso Test Enclosure | Head and Torso Test Shells |
Hemi-Anechoic Chambers | |
Predictable Field Chambers | |
Reverberation Chamber | |
Small Device Test Enclosures | |
Small Device Test Enclosures-CN | |
Virtual Acoustic Soundscape Technology (VAST) | |
Near-field probes manufactured by ETS-LINDGREN | |
7405 | Includes five E&H near-field probes, coaxial extension cables, and carrying case. |
7405-901B | 6 cm loop |
7405-902B | 3 cm loop |
7405-903B | 1 cm loop |
7405-904B | 3.6 cm ball |
7405-905B | 5mm stub tip |
7405-906 | Coaxial extension |
Near-field probe preamplifier manufactured by ETS Lindgren | |
7405-OPT1 | Pre-adder with power supply = 110 volts |
100 kHz to 3 GHz with female "BNC" connector | |
7405-OPT1/2 | Pre-adder with power supply = 220 volts |
100 kHz to 3 GHz with female "BNC" connector | |
7405-907BN110 | Pre-adder with power supply = 110 volts |
100 kHz to 3 GHz with female "N" connector | |
7405-907BN220 | Pre-adder with power supply = 220 volts |
100 kHz to 3 GHz with female "N" connector | |
7405-907BN/PSE | Pre-adder with power supply = 110 volts |
100 kHz to 3 GHz with female "N" connector Sold in Japan | |
7405-OPT1/PSE | Pre-adder with power supply = 110 volts |
100 kHz to 3 GHz Female "BNC" Connectors Sold in Japan | |
Antenna tripods and antenna towers from ETS-LINDGREN![]() Antenna towers produced by ETS-LINDGREN ![]() Controller for antenna towers manufactured by ETS-LINDGREN | |
4-TR | Linoleum Tripod with Adjustable Center Column |
Comes with 101938C Biconical Antenna Installation and 101939E Log Periodic Antenna Installation | |
Minimum height: 37 inches (93.98 cm) | |
Maximum height: 80 inches (203.20 cm) | |
Maximum load: 30 lbs (14 kg) | |
4-TR, 1M | Linoleum Tripod with Adjustable Center Column |
Comes with 101938C Biconical Antenna Installation and 101939E Log Periodic Antenna Installation | |
Minimum height: 19.7 inches (50.04 cm) | |
Maximum height: 39.4 inches (100 cm) | |
Maximum load: 26 lbs (11.8 kg) | |
4-TR, 1ML | Linoleum tripod with adjustable center column (lighter loads) |
Comes with 101938C Biconical Antenna Installation and 101939E Log Periodic Antenna Installation | |
Minimum height: 19.7 inches (50.04 cm) | |
Maximum height: 39.4 inches (100 cm) | |
Maximum load: 20 lbs (11.8 kg) | |
7-TR | All Fiberglass Antenna Mounting Systems with Adjustable Height Carrier System, Unpolarized |
Minimum height: 1 meter, maximum height: 2 meters | |
Maximum load: 30 lbs. | |
*Note: Includes movable arm 109042 | |
7-TR/POL-M | 7-TR with manual polarization option, rotates between horizontal and vertical positions |
Note: Moving arms are not included and must be selected from the options below. | |
7-TR/Ball | 7-TR with pneumatic polarization option, rotates between horizontal and vertical positions |
NOTE: Controller or air source not included, see EMCenter (required for operation) | |
Note: Moving arms are not included and must be selected from the options below. | |
EMCenter™ | Position Controller |
EMControl™ | Position Controller Plug-in Card Model 7006-001 |
1052 | Antenna Tower Positioner |
2171B | Boresight Antenna Tower |
2175 | Antenna Tower |
Model number | 7-TR Arm Options |
109042 | Movable arm as, antenna mounted, straight |
(Typical antenna mounted on 7-TR) | |
108983 | Movable Arm Butt, Antenna Mount, Offset/Spike |
(Typical antenna mounted on 7-TR/POL and 7-TR/POL-M) | |
108507 | Movable arm as, antenna mounted, 3106 |
(3106 antenna installed) | |
114141 | Arm Assembly, Stinger Only |
ETS-LINDGREN produces energy measuring devices for safety applications. | |
Model number | Professional Measuring Instruments |
HI-2200 | RF Measuring Instrument (probe not included, see options below) |
Includes shoulder strap, carrying case, RS-232 cable and software | |
Optional probe for HI-2200: | |
H200 | Magnetic field probes: 5 MHz to 300 MHz |
H210 | Magnetic field probe: 300 Khz to 30 MHz |
E100 | Electric field probes: 100 kHz to 5 GHz |
C310 | Compliant Electric Field Probe (ICNIRP) |
C300 | Compliant Electric Field Probes (FCC) |
H-491009 | dielectric tripod |
Low-frequency EMF meter from ETS-lindgren | |
HI-3604 | Elf Measuring Instruments |
HI-3616 | Remote readout of HI-3604 |
HI-4413 | RS232 Adapter for HI-3604 |
HI-3638 | ELF/VLF electric field meter, 5 Hz - 400 kHz |
Microwave Oven Meter manufactured by ETS-lindgren![]() Microwave Test Probes from ETS-LINDGREN | |
HI-1501 | Frequency Response: 2450 MHz |
HI-1600 | Frequency Response: 915 MHz and 2450 MHz |
HI-1801 | Frequency Response: 2450 MHz |
HI-1710A | Includes HI-2623 with purchase |
HI-2623 | HI-1710A Probe Preamplifier |
Hazard monitors produced by ETS-lindgren | |
HI-1500-3B | 0-10.0 mW/cm2 (US only) |
HI-2602 | Interlock monitor, 2450 MHz, 0.2-2.0 mW/cm2 |
HI-2602-01 | Interlock monitor, 915 MHz, 0.4-4.0 mW/cm2 |
HI-2602-02 | Interlocking Monitor, 2450 MHz, 1-10 mW/cm2 |
Calibration Comparison System produced by ETS-lindgren | |
H-491218 | Control module assembly, HI-2790B |
HI-2790B | Consists of HI-2790B, HI-1710A, HI-2623 |
This ETS-LINDGREN product list list is constantly updated on our website, you can use CTRL+D to bookmark this page. Contact EUTTEST for specific product prices and parameters.
