ETS 6512 ETS-LINDGREN Shielded Loop Antenna

Model: ETS 6512
Type: Ring antenna
Brand: ETS-Lindgren

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

ETS-Lindgren's ETS 6512 loop antenna, distributed by EUTTEST Shenzhen, can be used up to 30 MHz. The ETS 6512 is a passive loop antenna that can be tested for RE radiated emissions and RS radiated immunity. ETS 6512 and ETS 6511 The input power is the same and many of the parameters are the same. However, the ETS 6512 achieves a much larger frequency range of use. Each loop antenna can be individually calibrated to ANSI C63.5 using NIST-traceable equipment. By knowing the actual antenna factors and antenna performance characteristics, rather than typical data, you can more accurately measure field strengths in your tests.

ETS 6512 Technical Data

<<<<提醒:左右滑动表格>>>>
manufacturerETS-LIDNGREN, USA
Antenna ModelETS 6512
agentShenzhen EUTTEST
frequency of use9kHz-30MHz
connectorBNC f
Input power max.20W
antennae directionin all directions
Polarization typebiometrics
sizeHeight: 59.8 cm (23.54 inches)

Length: 3.8 centimeters (1.50 inches)

Width: 12.7 cm (5.00 inches)

Weight: 1.6 kg (3.53 lbs)

<<<<提醒:左右滑动表格>>>>

More technical data charts:

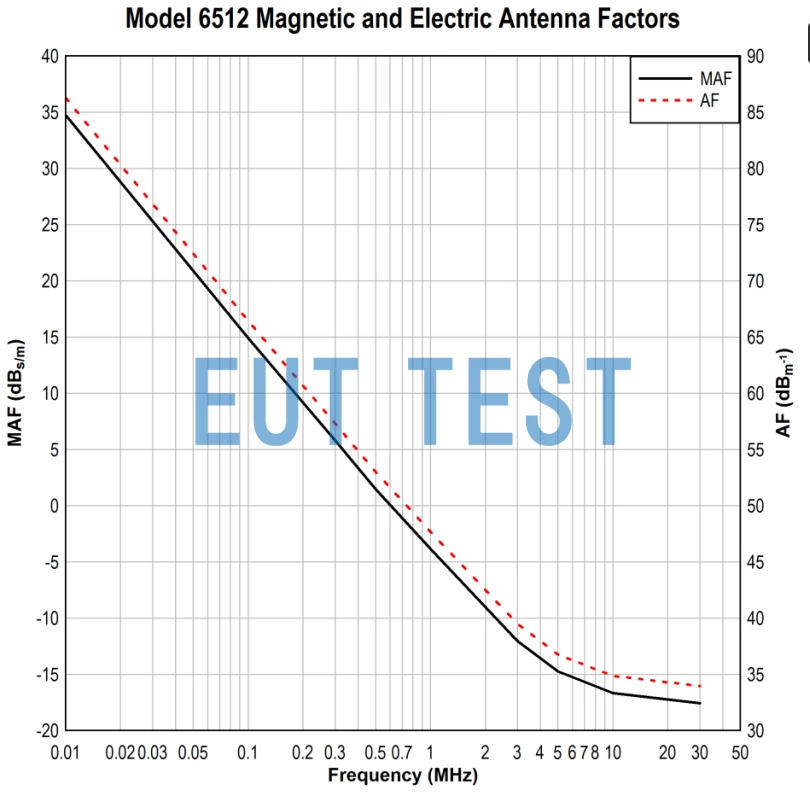

Antenna Coefficients for Loop Antenna ETS 6512

Antenna Coefficients for Loop Antenna ETS 6512

Magnetic Field Direction Diagram for ETS 6512 Loop Antenna

Magnetic Field Direction Diagram for ETS 6512 Loop Antenna

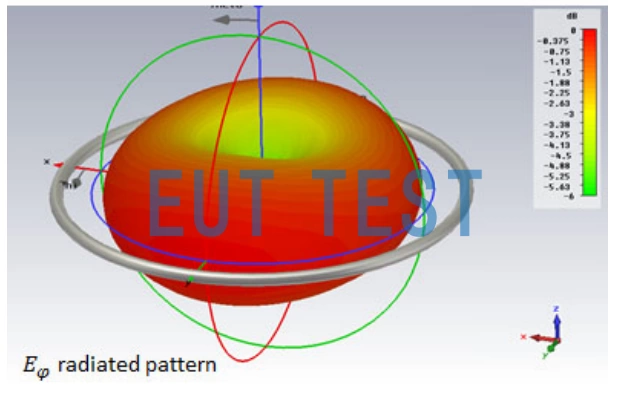

ETS 6512 Electric Field Direction Diagram of a Loop Antenna

ETS 6512 Electric Field Direction Diagram of a Loop Antenna
