Introduction：
ETS-Lindgren ETS 6511 passive loop antenna is distributed by EUTTEST Shenzhen, it is used in the frequency range of 5 MHz, designed for EMC radiation and EMC immunity testing. In the radiation test, because of its passive characteristics need to be added to the antenna external preamplifier to improve the signal-to-noise ratio, used for immunity testing directly to the loop antenna signal source output can be, the most input power please see the following technical parameters table.
All loop antennas can be individually calibrated according to ANSI C63.5 using NIST-traceable equipment. By understanding actual antenna factors and antenna performance characteristics rather than typical data, you can more accurately measure field strengths during testing.
Technical data of the ETS 6511 ring antenna:
| manufacturer | ETS-LINDGREN |
| Product model | ETS 6511 |
| Available frequency range | 20Hz-5MHz |
| Number of turns | 8 laps. |
| connector | BNC |
| Maximum Input Power | 20W = 43.01dBm |
| polarize | biometrics |
| promise to keep sth. in good repair | 2 years |
| Input Voltage | 12V DC 115/230VAC |
| size | Height: 59.8 cm (23.54 inches) Length: 3.8 centimeters (1.50 inches) Width: 12.7 cm (5.00 inches) Weight: 1.6 kg (3.53 lbs) |

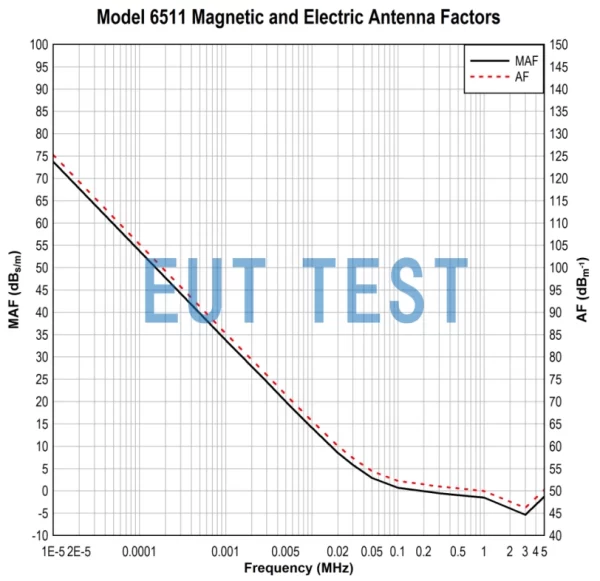

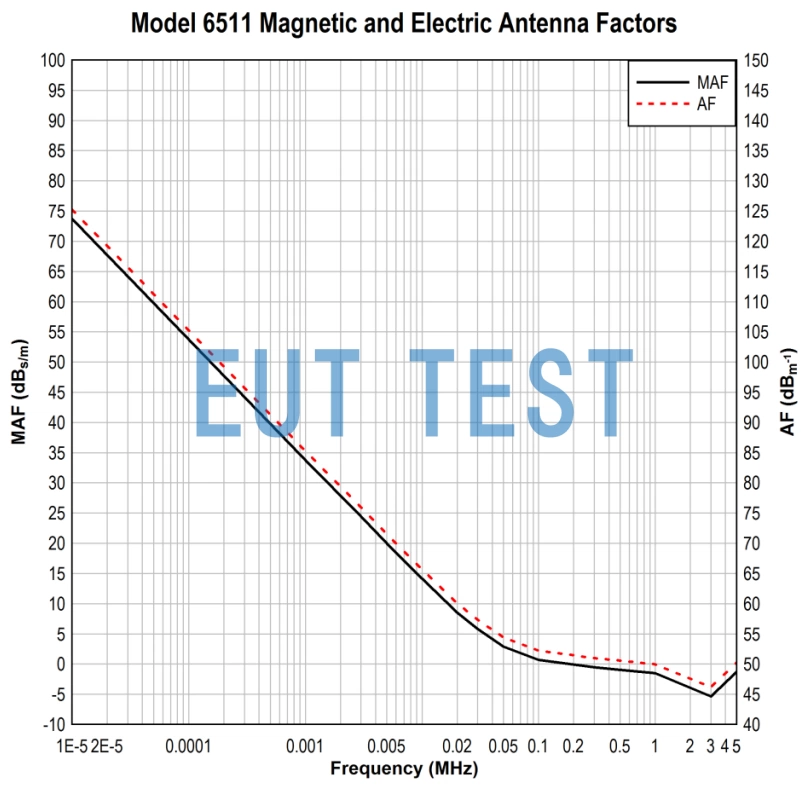

Antenna factor for ETS 6511
