ETS 6502 ETS-LINDFREN 9kHz-30MHz

Model: ETS 6502
Type: Ring antenna
Brand: ETS-Lindgren

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

ETS 6502 active shielded loop antenna is used for signal reception below 30MHz, which is produced by ETS-LINDGREN and authorized to be sold by EUTTEST Shenzhen.

ETS 6502 Test Application Guide:

For EMC testing, the ETS 6502 antenna has a built-in preamplifier to help the loop antenna produce good sensitivity and keep the antenna coefficients constant. The preamplifier is mounted in the bottom base and provides a 50 Ω output connector to connect to an external receiver for use. The preamplifier is powered by a rechargeable sealed battery. The preamplifier's front panel controls and indicators include a power switch, an on indicator, a saturation indicator, and a socket for a battery charger. Included is a switch selectable battery charger for 115 VAC or 230 VAC 50/60 Hz operation. The saturation indicator is activated when the input signal exceeds the 5 V/m saturation limit of the internal preamplifier.

ETS 6502 loop antennas are all individually calibrated according to ANSI, C63.5 using NIST-traceable equipment. By knowing the actual antenna factors and antenna performance characteristics, rather than typical data, you can more accurately measure field strengths during testing.

Technical data of the ETS 6502:

<<<<提醒:左右滑动表格>>>>
manufacturerETS-LINDGREN

Distributed by EUTTEST

Product modelETS 6502
Available frequency9kHz-30MHz
1dB compression point5V/m
connectorBNC f
dynamic range125dB @ 1MHz

85dB @ 10kHz

impedance50Ω
antennae directionin all directions
polarizebiometrics
Electricity supply110 / 230VAC 50 / 60Hz
(level of) sensitivity-1 dB (µA / m) @ 10 kHz

-42 dB (µA / m) @ 1 MHz

sizeHeight 67.3 cm (26.50 inches)

Length 12 cm (4.72 in)

Weight 2 kg (4.41 lbs)

Width 19 cm (7.48 inches)

<<<<提醒:左右滑动表格>>>>

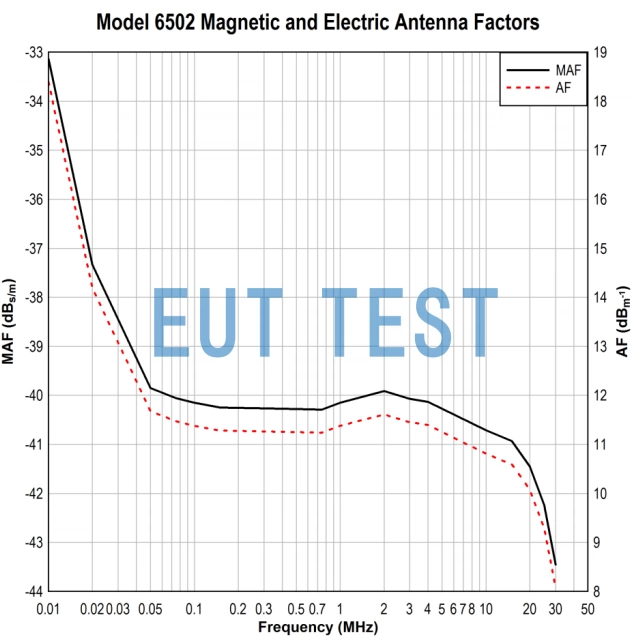

Antenna Coefficients for ETS 6502 - Magnetic and Electric Fields

Antenna Coefficients for ETS 6502 - Magnetic and Electric Fields
