Introduction：

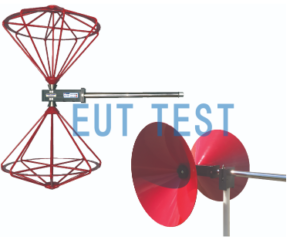

The ETS 3180C is a log-periodic hybrid antenna manufactured by ETS-Lindgren in the United States and authorized for sale by EUTTEST in Shenzhen, China. ETS-Lindgren's ETS 3180C broadband mini-Bicon antenna is designed to provide the best performance in the frequency ranges from 30 MHz to 1 GHz (biconical) and from 30 MHz to 3 GHz (conical cell). optimal performance. The ETS 3180C's uni carefully designed elements provide omnidirectional patterning without beam splitting.
Type ETS 3180C is ideal for free space NSA (FSNSA) testing in fully anechoic rooms. Its small size allows harmonic monitoring according to IEC 61000-4-3.
ETS 3180C Technical Data:
| Model number | ETS 3180C |
| manufacturer | ETS-lindgren |
| agent | Shenzhen EUTTEST |
| Biconical - available frequency range | 30MHz-1GHz |
| Conical - available frequency range | 30MHz-3GHz |
| connector | N mother |
| Maximum continuous power | 250mW |
| impedance | 50Ω |
| antennae direction | directional |
| polarize | biometrics |
| VSWR | Average 3:1 |
| size | Double taper: Width: 64.9 cm 25.5 inches Length: 72.4 cm 28.5 inches Diameter: 40.0 centimeters 15.7 inches Conical: Width: 37.5 cm 14.8 inches Length: 71.71 centimeters 28.2 inches Diameter: 39.1 cm 15.4 inches |
| standard equipment | Antennas included: Valencia Pair of double cone elements Pair of conical elements Individually calibrated. Includes actual factors and signed calibration compliance certificate. brochure |

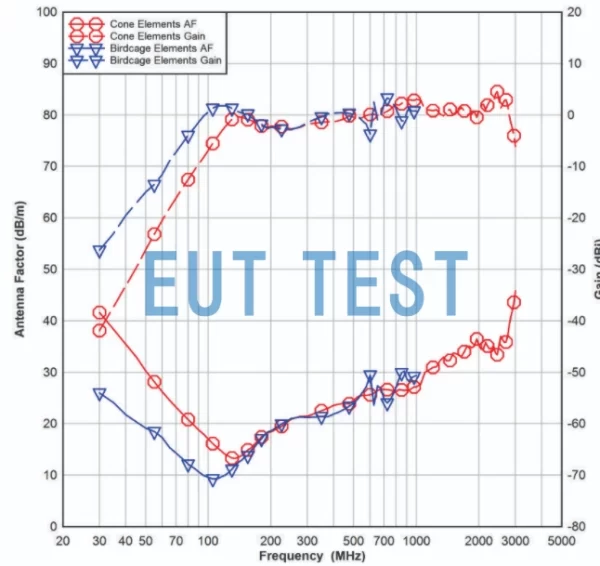

Antenna factor for ETS 3180C

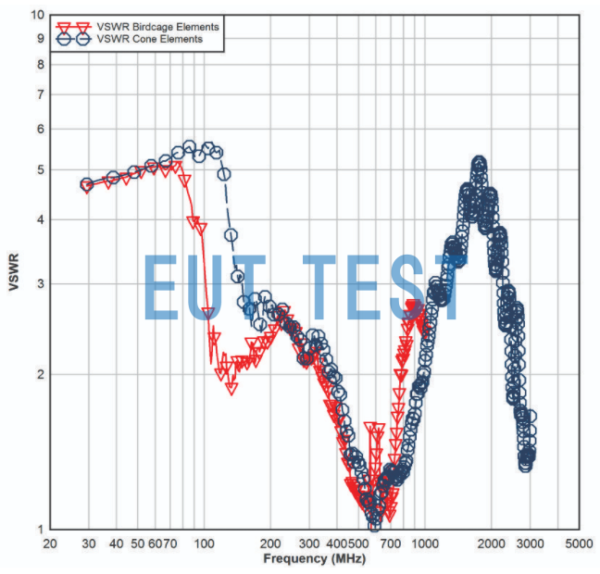

VSWR of ETS 3180C Antenna

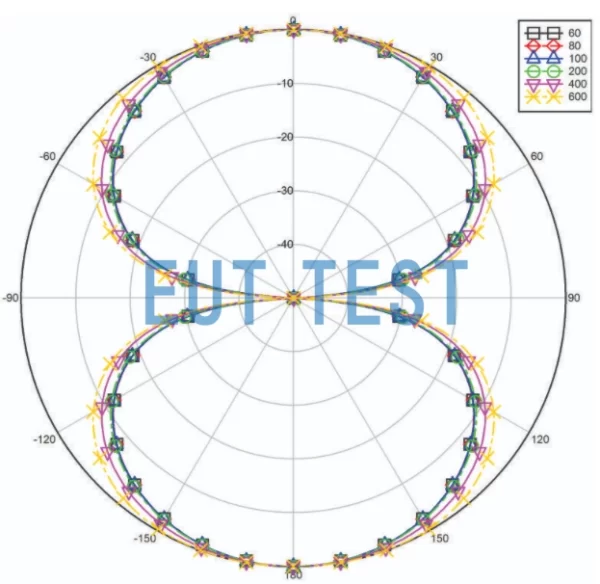

E-field Direction Diagram of ETS 3180C Antenna 60MHz-600MHz
E-field orientation maps for the ETS 3180C antenna at other frequencies contact EUTTEST for a copy.
